DTC U0322-09: Software Incompatibility with Body Control Module Component Failures [07/2015 - ]: Wiring Diagram

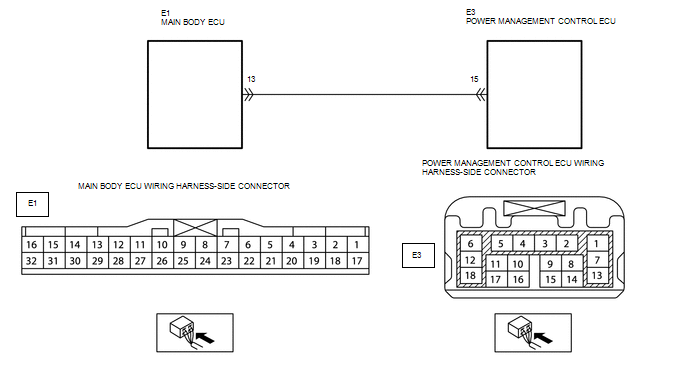

Fig 1: Body Control Module Wiring Diagram And Connector End Views
GTY493968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
