DTC U0142-68: Lost Communication With Body Control Module "B" event information [07/2015 - ]: Wiring Diagram

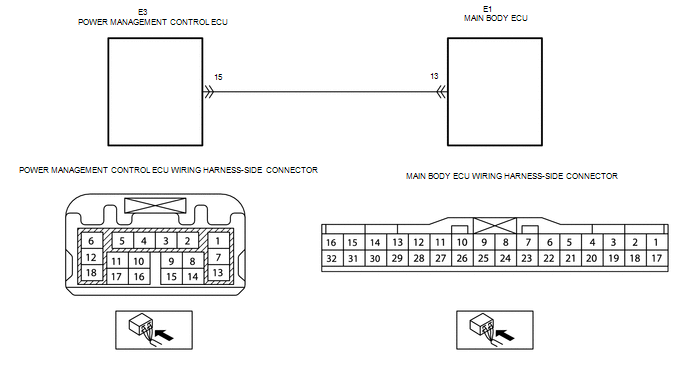

Fig 1: Body Control Module "B" Event Information With Connector End Views
GTY490685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
