DTC B1142-13: Ignition Status 1 circuit open [07/2015 - ]: Wiring Diagram

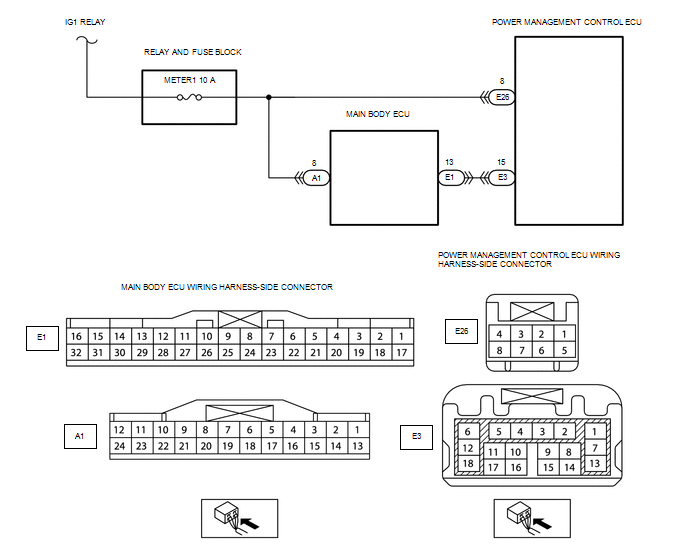

Fig 1: Ignition Status 1 Circuit Diagram And Connector End Views

GTY490614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
