DTC B113E-11: External Boot/Trunk Release switch circuit short to ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

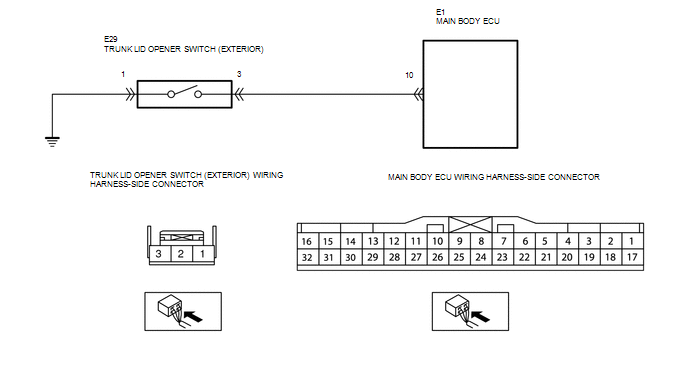

Fig 1: External Boot/Trunk Release Switch Circuit Wiring Diagram With Connector End Views
GTY495221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

Fig 2: External Boot/Trunk Release Switch Circuit Wiring Diagram With Connector End Views
GTY492698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
