DTC B109E-87: Remote Keyless Entry missing message [07/2015 - ]: Wiring Diagram

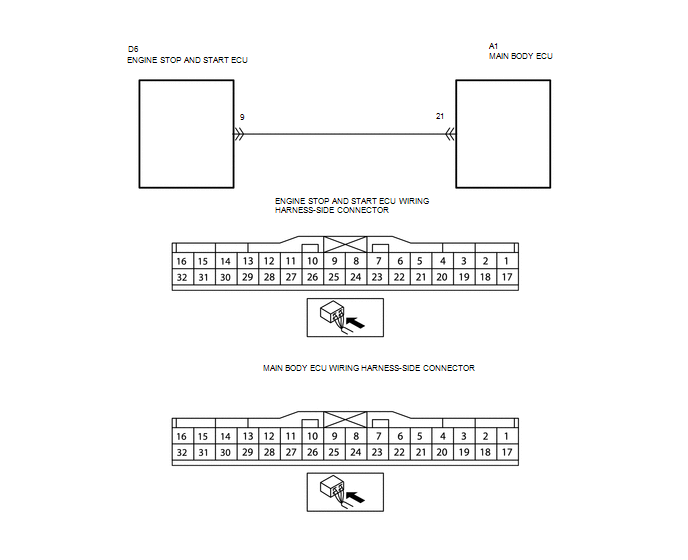

Fig 1: Remote Keyless Entry Wiring Diagram With Connector End View

GTY492869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
