DTC B1099-11: Right Position Light circuit short to ground [07/2015 - ]: Wiring Diagram

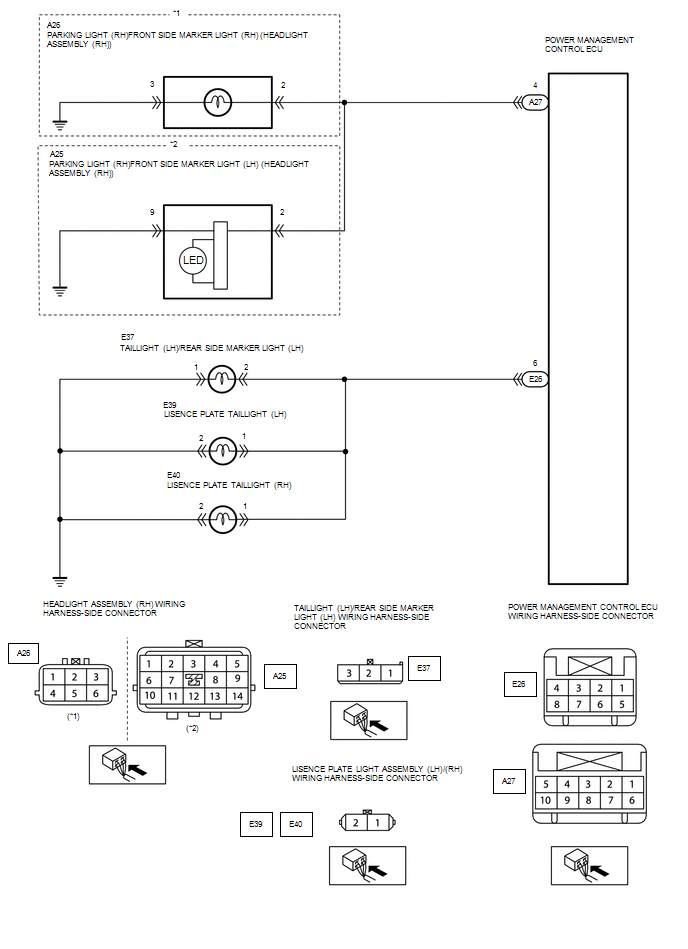

Fig 1: Right Position Light Wiring Diagram And Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*¹ : With headlight assembly (bulb type)

*² : With headlight assembly (LED type)
