Installation [07/2015 - ]: Procedure

  1. INSTALL DISC PLAYER
    1. Connect the connector.

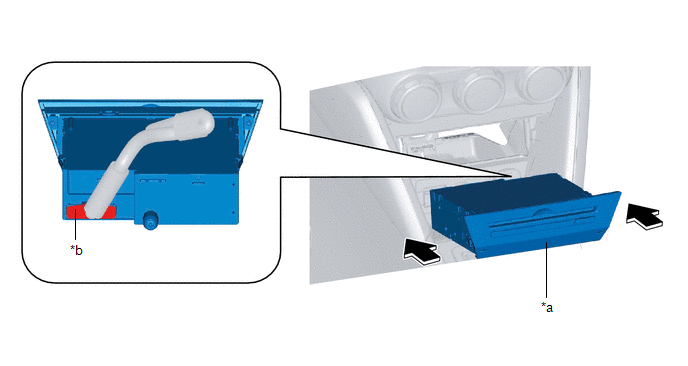

      GTY492206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a DISC PLAYER *b CONNECTOR
    2. Install the disc player.
    3. Shift the selector lever back to the P position. (ATX)
    4. Connect the negative battery cable.

      Refer to INSTALLATION [07/2015 - ]
