Inspection [07/2015 - ]: Procedure
- INSPECT COMBINATION METER
- Speedometer Inspection
Using a speedometer tester
NOTE:When only the front or the rear wheels are driven using a speedometer tester, the VSC may determine that the vehicle speed signal is in error and the engine cannot be stopped by the normal operation. If the engine cannot be stopped, perform an emergency engine stop operation.
Refer to PRECAUTION [07/2015 - ]
- Adjust the tire pressure to the specification.
- Using a speedometer tester, verify that the values are as indicated in the table.
km/h
Speedometer indication (km/h) Speedometer tester indication (km/h) 20 18.0 - 22.0 40 38.0 - 42.0 60 58.0 - 62.0 80 78.0 - 82.0 100 98.0 - 102.0 120 117.25 - 122.75 140 137.0 - 143.0 160 157.0 - 163.0 180 177.0 - 183.0 200 197.0 -203.0 mph
Speedometer indication (km/h) Speedometer tester indication (km/h) 10 8.749 - 11.20 20 18.75 - 21.24 30 28.74 - 31.24 40 38.74 - 41.24 50 48.74 - 51.24 60 58.74 - 61.24 70 68.494 - 71.477 80 78.54 - 81.735 90 88.179 - 91.783 100 98.127 - 101.83 110 108.13 - 111.83 120 118.1 - 121.83 130 127.82 - 132.12 - If not as indicated in the table, perform the DTC inspection and related wiring harness inspection for the following modules.
- ECM
- VSC
- If the ECM, VSC, and related wiring harnesses are normal, replace the instrument cluster.
See step 1
- If not as indicated in the table, perform the DTC inspection and related wiring harness inspection for the following modules.
- Using the Techstream
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Data logger"
(2) "Module"
(3) "Combination Meter"
- Using the simulation function SPEEDOMTR, verify that the values are as indicated in the table.
km/h
Techstream display Speedometer display 60 km/h Speedometer needle moves to approx. 58 - 62 km/h {36 - 39 mph}. 120 km/h Speedometer needle moves to approx. 117.25 - 122.75 km/h {72.856 - 76.274 mph}. Off Speedometer needle moves to the bottommost position. mph
Techstream display Speedometer display 60 km/h Speedometer needle moves to approx. 58.74 - 61.24 km/h {36.50 - 38.05 mph}. 120 km/h Speedometer needle moves to approx. 118.1 - 121.83 km/h {73.38 - 75.702 mph}. Off Speedometer needle moves to the bottommost position. - If not as indicated in the table, perform the related wiring harness inspection.
- If the related wiring harnesses are normal, replace the instrument cluster.
See step 1
- If not as indicated in the table, perform the related wiring harness inspection.
- Fuel Gauge/LCD Inspection
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Data logger"
(2) "Module"
(3) "Combination Meter"
- Using the simulation function LCD_SEG, verify that the LCD is illuminated.
- If there are any non-illuminated area, replace the instrument cluster.
See step 1

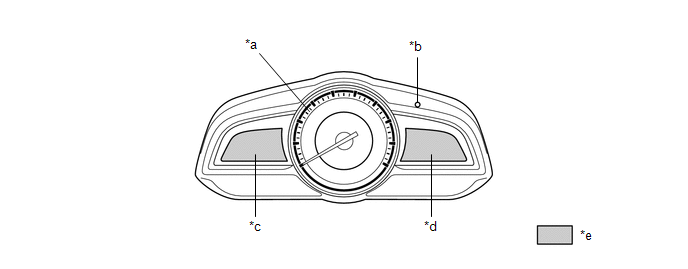

*a SPEEDOMETER *b PANEL LIGHT CONTROL SWITCH/TRIPMETER SWITCH *c TACHOMETER/ODOMETER/TRIPMETER *d FUEL GAUGE/TRIP COMPUTER/AMBIENT TEMPERATURE *e LCD - - - If there are any non-illuminated area, replace the instrument cluster.
- Warning/Indicator Light Illumination Inspection
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Data logger"
(2) "Module"
(3) "Combination Meter"

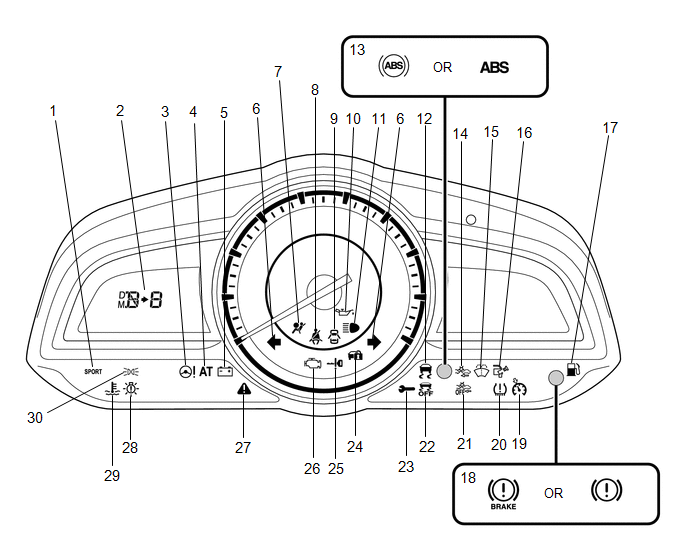

- Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.
- If any of the warning/indicator lights are not displayed, replace the instrument cluster.
See step 1
X: Applicable -: Not applicable
No Name Message is Yed in multi-display when warning/indicator light turns on/flashes Comment Turns on when IG-ON 1 Select mode indicator light - ATX - 2 Shift position indicator/gear position indicator/gear shift indicator - - - 3 Power steering malfunction indicator light x x 4 Automatic transaxle warning light x ATX x 5 Charging system warning light x - x 6 Turn signal/hazard warning indicator lights - - - 7 Air bag/seat belt pretensioner system warning light x - x 8 Seat belt warning light - - - 9 Door-ajar warning light - - - 10 Engine oil warning light x - x 11 Headlight high-beam indicator light - - - 12 Slip indicator light x - x 13 ABS warning light x - x 14 Pre-collison indicator light (red)/Pre-collison warning light (amber) - With pre-collison x 15 Low washer fluid level warning light x With washer fluid-levelsensor - 16 Check fuel cap warning light - With check fuel cap warning light x 17 Low fuel warning light x - - 18 Brake warning light x - x 19 Cruise main indicator light (amber)/cruise set indicator light (green) - With cruise control system - 20 Tire pressure warning light x With TPMS x 21 Pre-collision OFF indicator light - With pre-collision x 22 VSC OFF indicator light - - x 23 Wrench indicator light x - x 24 Security indicator light - - x 25 KEY warning light (red)/KEY indicator light (green) x - - 26 Check engine light x - x 27 Master warning light x - x 28 LED headlight warning light - With front combination light (LED type) - 29 Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) x - x 30 Lights-on indicator ligh - - - - If any of the warning/indicator lights are not displayed, replace the instrument cluster.
- Alarm Inspection
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Data logger"
(2) "Module"
(3) "Combination Meter"
- Using the simulation function ALARM, verify that the buzzer sounds.
- If the buzzer does not sound, replace the instrument cluster.
See step 1
- If the buzzer does not sound, replace the instrument cluster.
- Speedometer Inspection
- COMBINATION METER CONFIGURATION (USING READ/WRITE FUNCTION) NOTE:
When the configuration is performed, CAN communication between the instrument cluster and control module connected to the CAN circuit is cut temporarily, and communication error DTCs may be detected. After performing the configuration, verify the DTCs for the control module connected to the CAN circuit and clear it if any DTC is detected.
HINT:
When performing configuration, it is necessary to read the vehicle specification information from the instrument cluster before replacing it. Connect the Techstream to the vehicle and perform vehicle identification before removing the instrument cluster. The vehicle specification information is temporarily stored in the Techstream.
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
- "Module programming"
- Then, select the following from the screen menu.
- "Programmable Module Installation"
- "Combination Meter"
- Perform the configuration following the instructions on the screen.
- Verify the DTCs for all of the control modules connected to the CAN circuit.
- If any DTC is stored, clear it.
- If the DTC is cleared, finish the procedure because the configuration has been completed normally.
- If the DTC remains, perform troubleshooting according to the DTC.
- COMBINATION METER CONFIGURATION (USING AS-BUILT DATA) NOTE:
When the configuration is performed, CAN communication between the instrument cluster and control module connected to the CAN circuit is cut temporarily, and communication error DTCs may be detected. After performing the configuration, verify the DTCs for the control module connected to the CAN circuit and clear it if any DTC is detected.
HINT:
If the configuration is performed using As-Built data, the set value of the personalization function is reset to the initial value (condition when shipped from factory). Verify the set value with the customer and perform the personalization function setting after performing the configuration using As-Built data.
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
- "Module programming"
- Then, select the following from the screen menu.
- "As-Built"
- "Combination Meter"
- Perform As-Built following the instructions on the screen.
- Verify the DTCs for all of the control modules connected to the CAN circuit.
- If any DTC is stored, clear it.
- If the DTC is cleared, finish the procedure because the configuration has been completed normally.
- If the DTC remains, perform troubleshooting according to the DTC.
- COMBINATION METER OPERATION RECORD
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initial screen.
- "Operational Record"
- Then, select the following from the screen menu.
- "Meter Warning System"
- Display the instrument cluster operation history according to the screen instructions.
- COMBINATION METER PERSONALIZATION FEATURES SETTING PROCEDURE NOTE:
The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the Techstream. Do not select [Not equipped] in the setting displayed on the Techstream.
- Turn And Hazard Indicator Alarm
Using Techstream
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Module programming"
(2) "Programmable Parameters"
- Select menu in the "Combination Meter".
- Select an item name, and than select option.
Preference
Tester Display Description Default Setting ECU TURN Bz VOLUME The volume of the turn and hazard indicator alarm can be changed. Big 01:Small, 10:Big Combination meter
- Using multi-display
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
- Lights-on Reminder Warning Alarm
Using Techstream
- Connect the Techstream to the DLC-2.
- After vehicle identification, select the following from the Techstream initialization screen.
(1) "Module programming"
(2) "Programmable Parameters"
- Select menu in the "Combination Meter".
- Select an item name, and than select option.
Preference
Tester Display Description Default Setting ECU Light Reminder Bz VOLUME The volume for the lights-on reminder warning alarm can be changed. Big or Off*1 01:OFF, 10:Small, 11:Big Combination meter * 1: The setting of the lights-on reminder can be changed with the time setting of auto light off system set to Off.
- Using multi-display
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
- Temperature
HINT:
When the ambient temperature display is switched, the set A/C cabin temperature display is also changed.

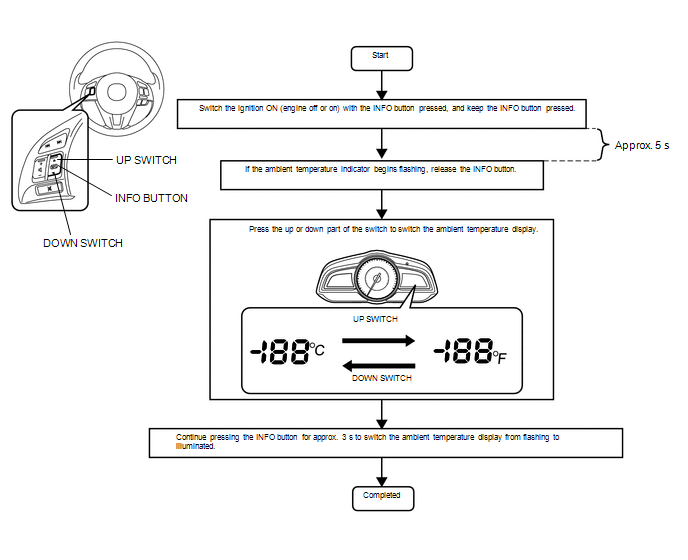

- Using instrument cluster (without multi-display)
- Using multi-display
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
- Distance
Using multi-display
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
Refer to CUSTOMIZE PARAMETERS [07/2015 - ]
- For the setting procedure of the personalization features using the multi-display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES".
- Turn And Hazard Indicator Alarm

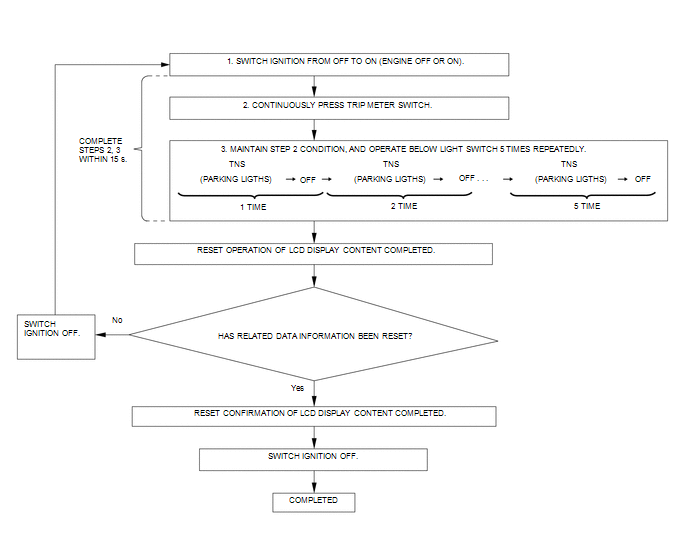

- COMBINATION METER DATA RESET PROCEDURE NOTE:
Explain the reset items to the customer for their understanding, and then perform the data reset.
