Disassembly [07/2015 - ]: Procedure

  1. DISASSEMBLY COMBINATION METER
    NOTE:
    • When disassembling the combination meter, perform the procedure being careful not to drop it. If the combination meter is hit forcefully during assembly such as by being dropped, it could get damaged and the system may not operate normally.
    • When disassembling the combination meter, perform the procedure on a workbench and clean cloth being careful not to damage the combination meter. If the combination meter is placed on the workbench directly, it could be damaged.
    1. Remove the cover.
    2. Remove the Panel.
    3. Remove the combination meter.

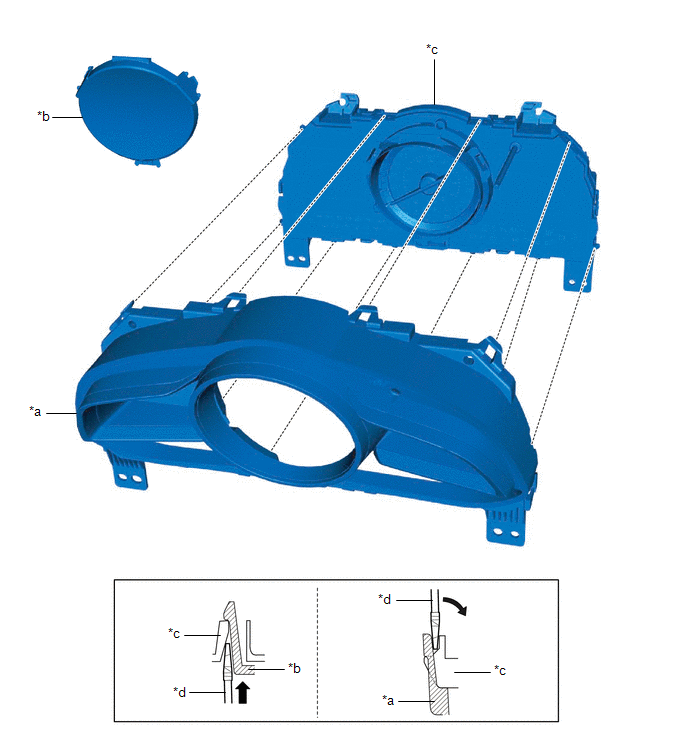

      GTY485206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cover *b Panel
      *c Combination Meter *d Flathead Screwdriver
