DTC B1219-11: Interior Boot/Trunk Release Switch circuit short to ground [07/2015 - ]
>>
Wiring Diagram
DTC B1219-11: Interior Boot/Trunk Release Switch circuit short to ground [07/2015 - ]: Wiring Diagram
w/o Smart Key System

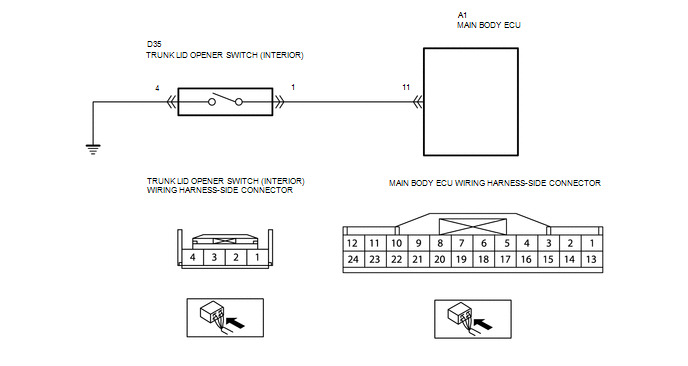

Fig 1: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Smart Key System
Fig 2: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
