DTC B1176-11: Passenger Door Ajar Switch circuit short to ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

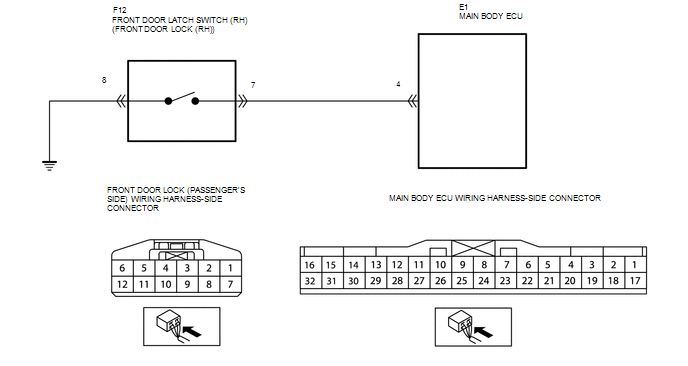

Fig 1: Passenger Door Ajar Switch circuit Wiring Diagram With Connector End View
GTY486991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

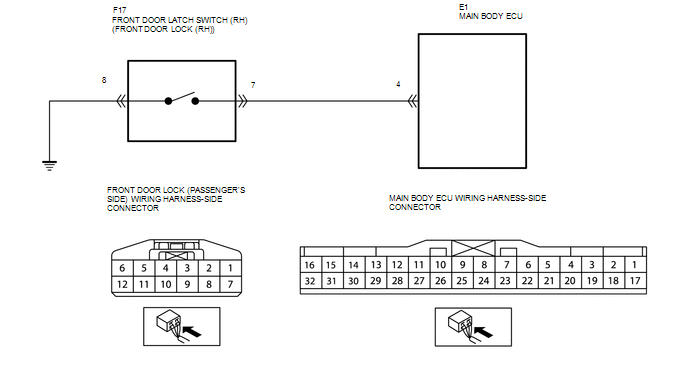

Fig 2: Passenger Door Ajar Switch circuit Wiring Diagram With Connector End View
GTY493949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
