DTC B1175-11: Drivers Door Ajar Switch circuit short to ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

Fig 1: Drivers Door Ajar Switch Circuit Wiring Diagram With Connector End Views
GTY483154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

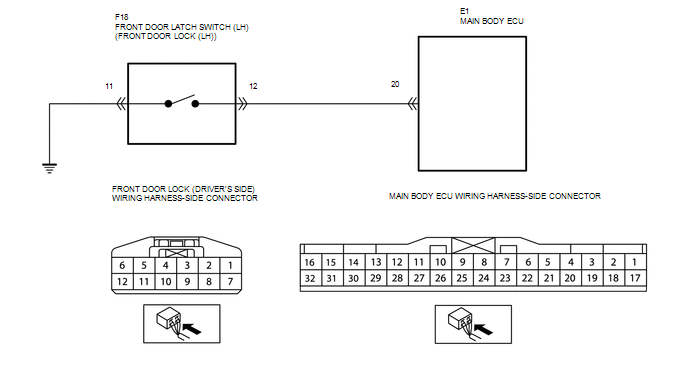

Fig 2: Drivers Door Ajar Switch Circuit Wiring Diagram With Connector End Views
GTY483153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
