DTC B1174-13: Passenger Door Interior Unlock Switch circuit open [07/2015 - ]: Wiring Diagram

w/o Smart Key System

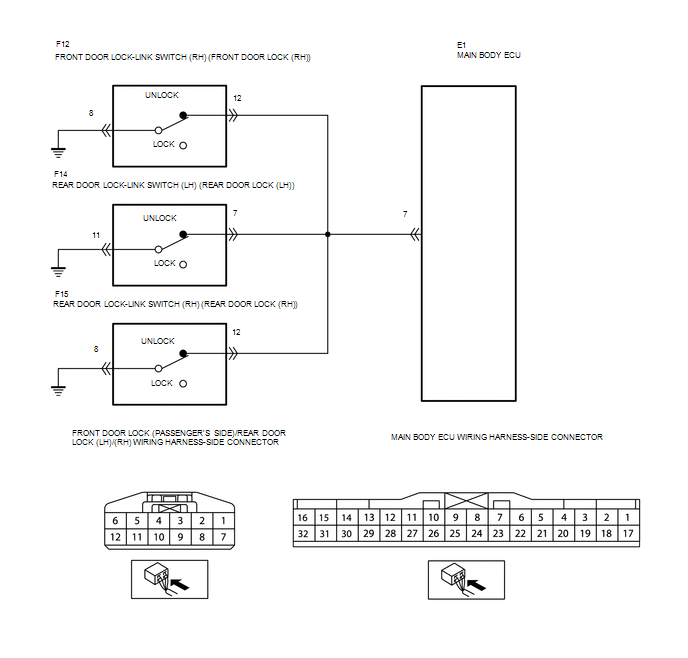

Fig 1: Passenger Door Interior Unlock Switch Circuit Wiring Diagram With Connector End View
GTY483607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

Fig 2: Passenger Door Interior Unlock Switch Circuit Wiring Diagram With Connector End View
GTY493197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
