Driver-Side Door Glass Cannot Be Operated Manually Or Automatically [07/2015 - ]: Wiring Diagram

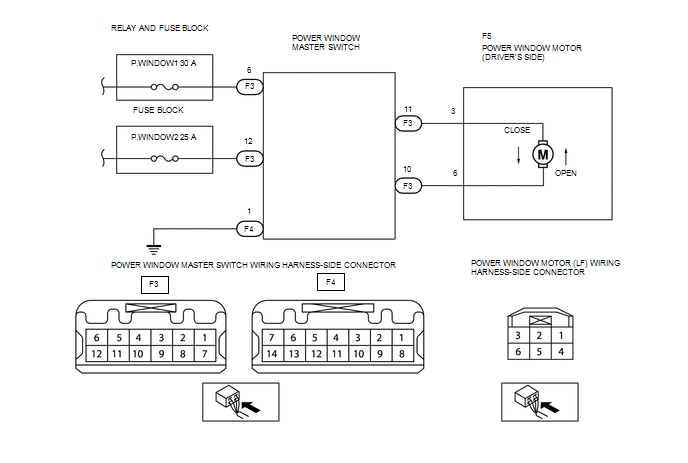

Fig 1: Power Window Circuit Diagram And Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
