DTC U2013-13: Switch Pack circuit open [07/2015 - ]: Wiring Diagram

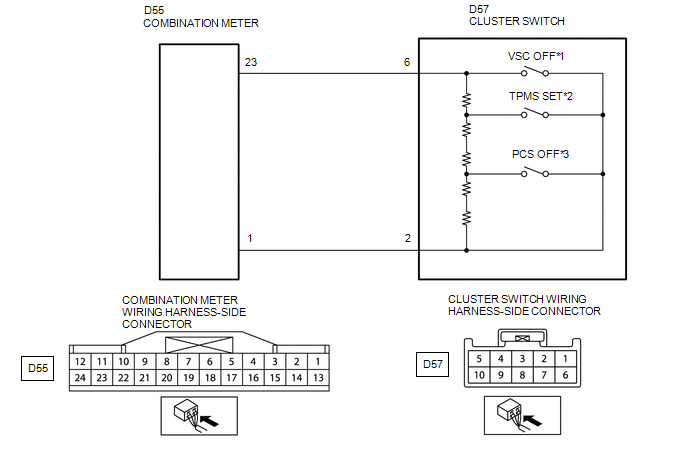

Fig 1: Switch Pack circuit diagram and Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1 : With VSC

*2 : With tire pressure monitoring system (TPMS)

*3 : With pre-collision
