DTC C0023-14: Stop Lamp Control circuit short to ground or open [07/2015 - ]: Wiring Diagram

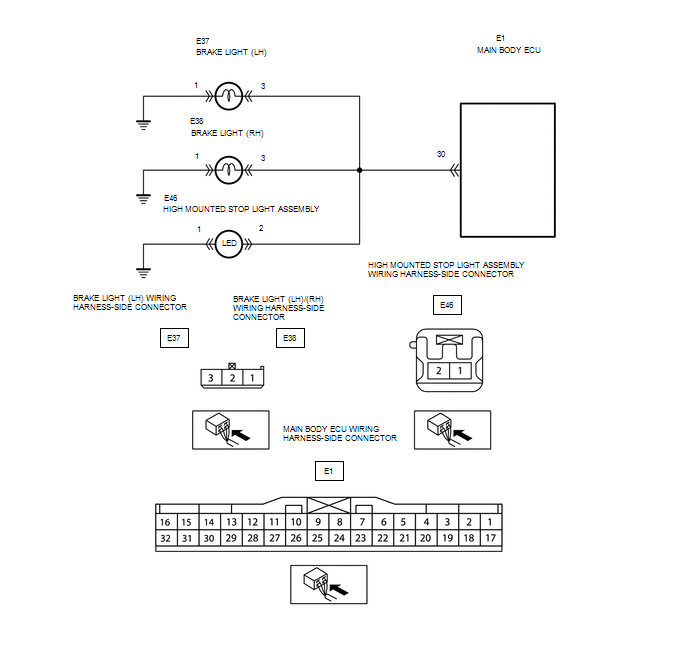

Fig 1: Stop Lamp Control Circuit With Connector End View

GTY491135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
