DTC B1D00-13: Left Low Beam circuit open [07/2015 - ]: Wiring Diagram

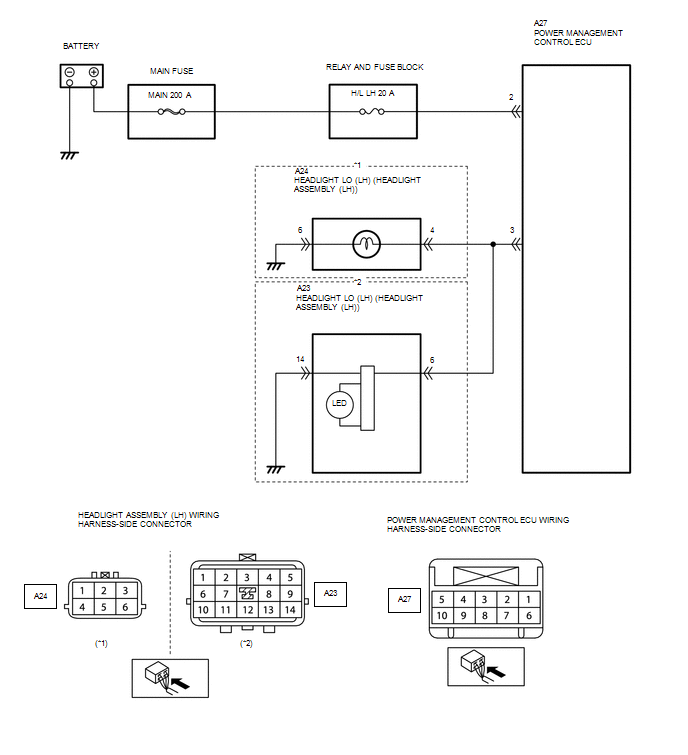

Fig 1: Left Low Beam Wiring Diagram And Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*¹ : With headlight assembly (bulb type)

*² : With headlight assembly (LED type)
