DTC B1C79-13: Front Washer Pump circuit open [07/2015 - ]: Wiring Diagram

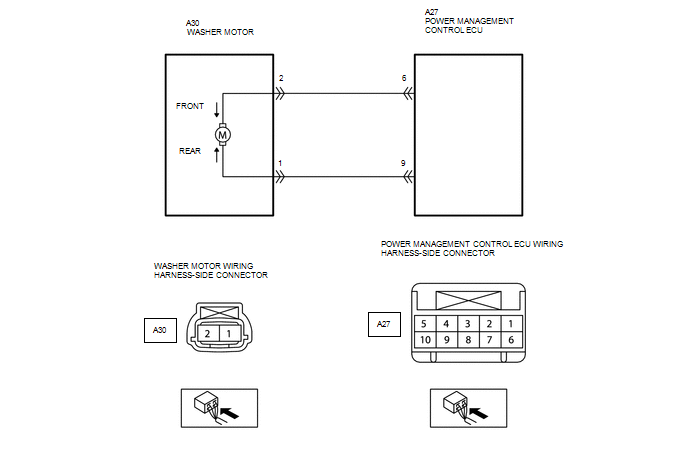

Fig 1: Front Washer Pump Wiring Diagram And Connector End Views

GTY483377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
