DTC B1D06-13: Left Turn Indicator circuit open [07/2015 - ]: Wiring Diagram

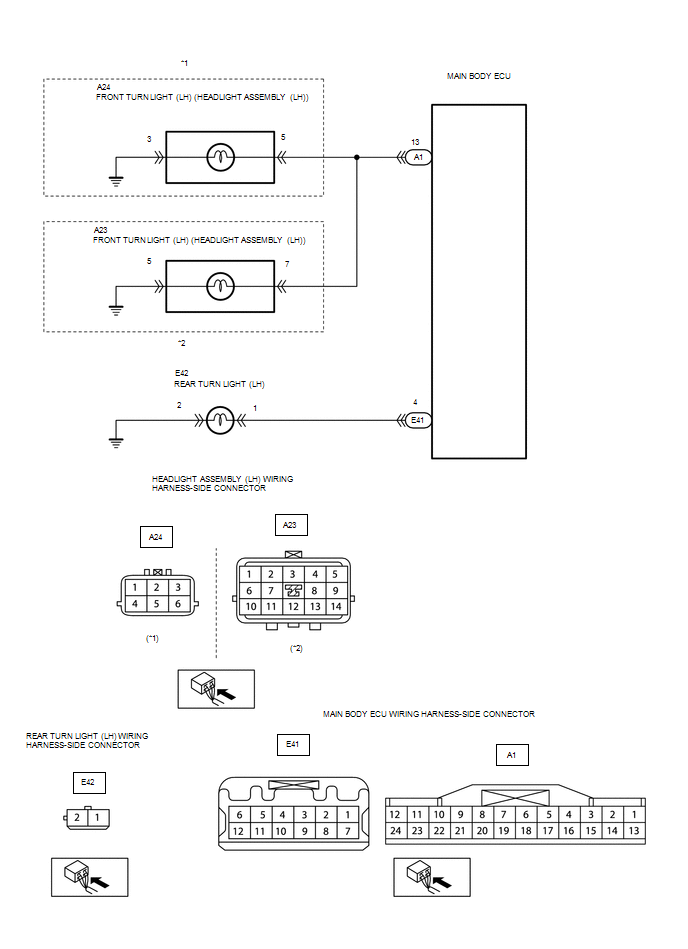

Fig 1: Left Turn Indicator Circuit Diagram And Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1 : With headlight assembly (bulb type)

*2 : With headlight assembly (LED type)
