DTC B1277-11: Reverse Lamp circuit short to ground [07/2015 - ]: Wiring Diagram

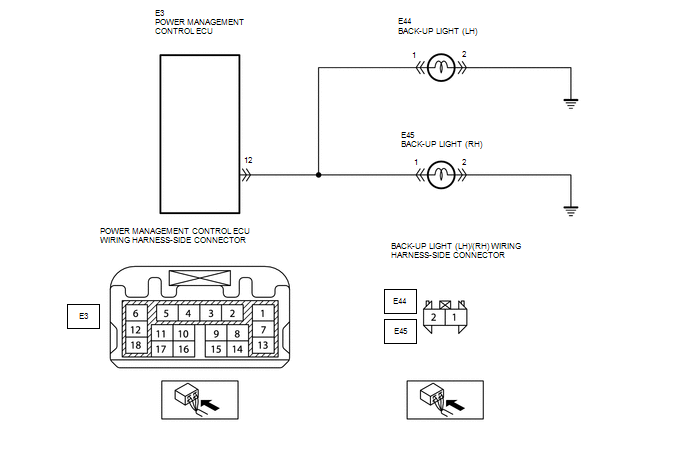

Fig 1: Reverse Lamp Circuit Diagram And Connector End Views

GTY487450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
