DTC B124A-11: Right Daytime Running Light circuit short to ground [07/2015 - ]: Wiring Diagram

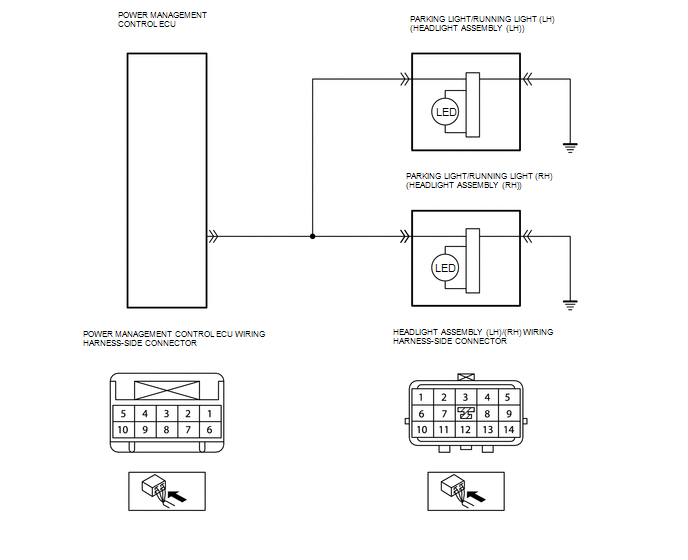

Fig 1: Right Daytime Running Light Circuit Diagram And Connector End Views
GTY493946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
