ODO/Trip Switch Malfunction [05/2014 - ]: Wiring Diagram

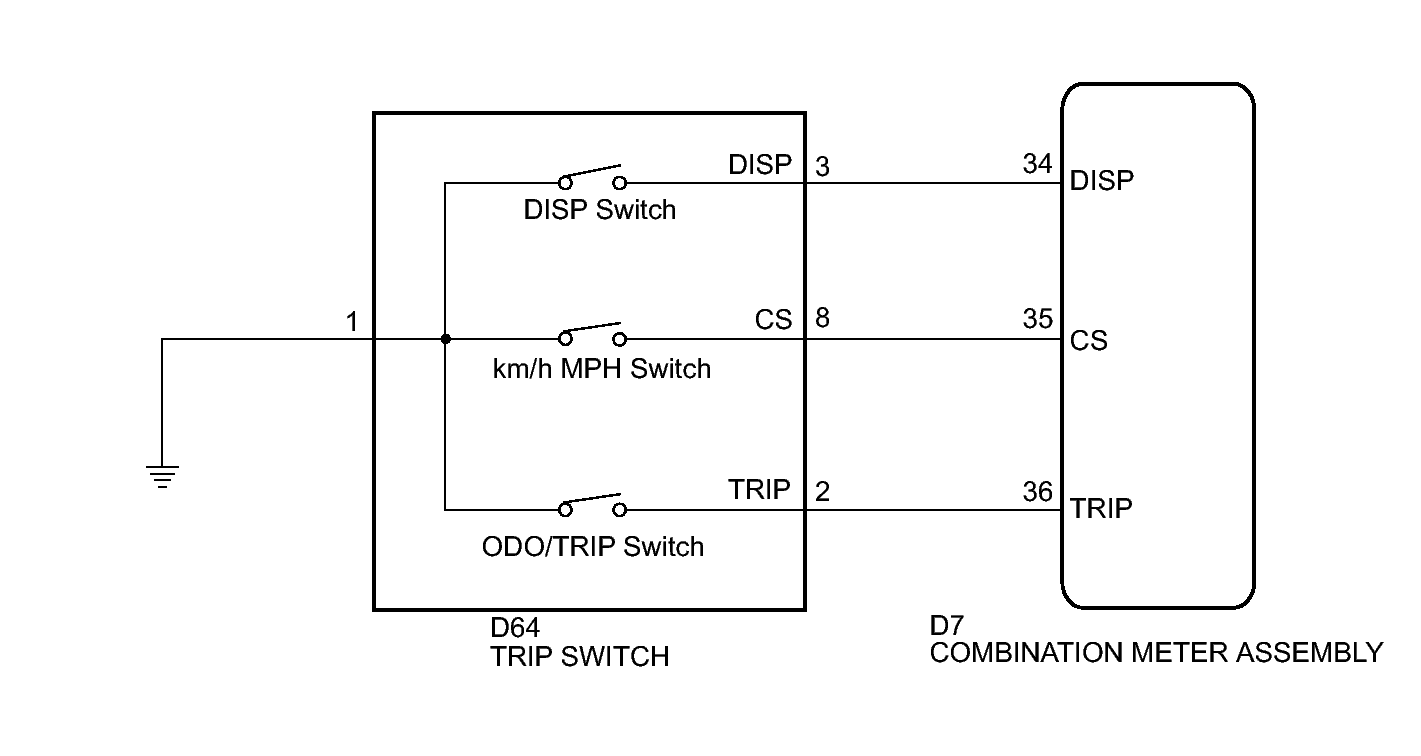

Fig 1: Combination Meter Assembly & Trip Switch Wiring Diagram

GTY471748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
