Components Location [05/2014 - ]: Illustration

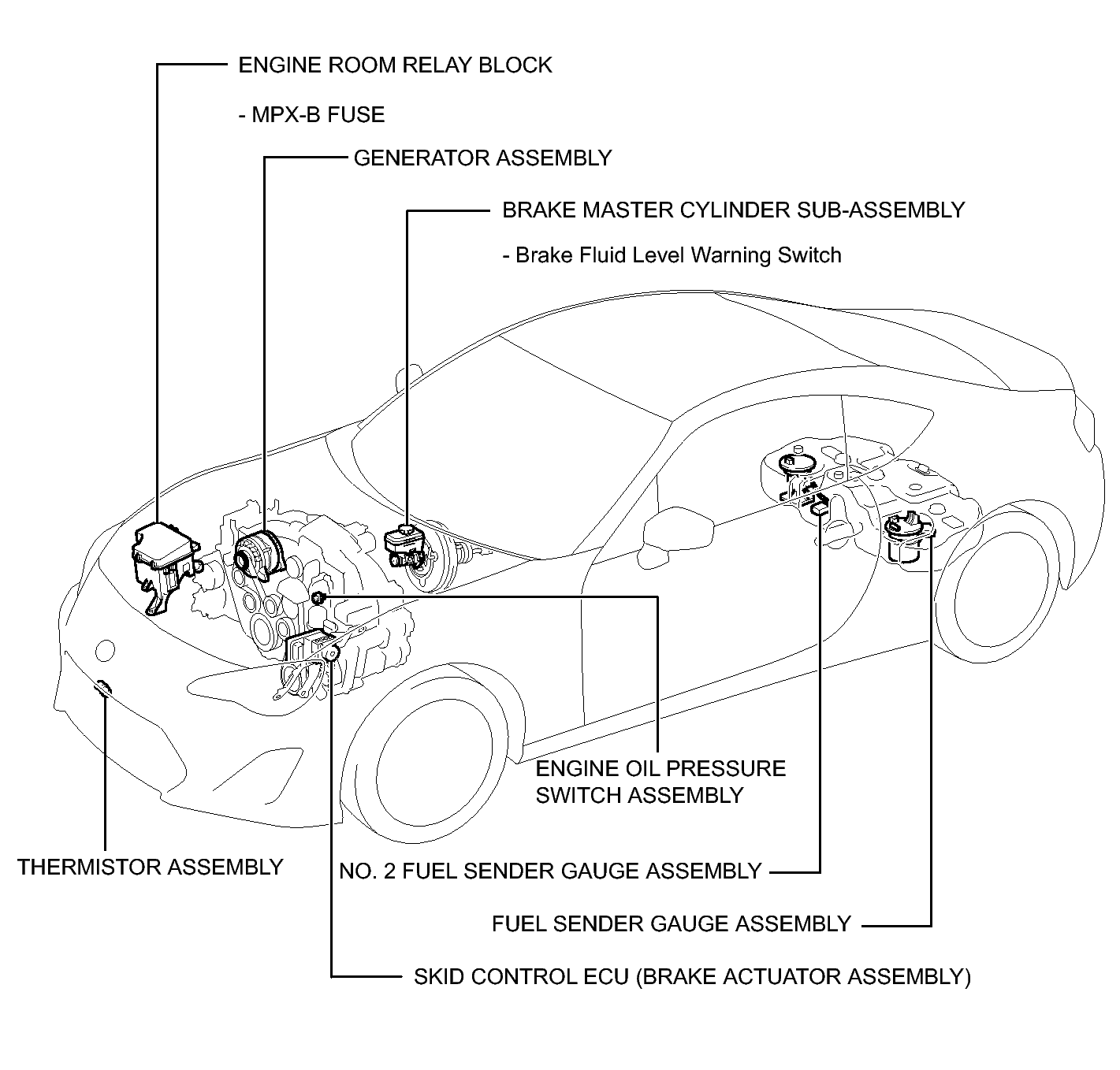

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 2)
GTY471583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Components Location (2 Of 2)
GTY388710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
