Components [08/2013 - ]: Illustration

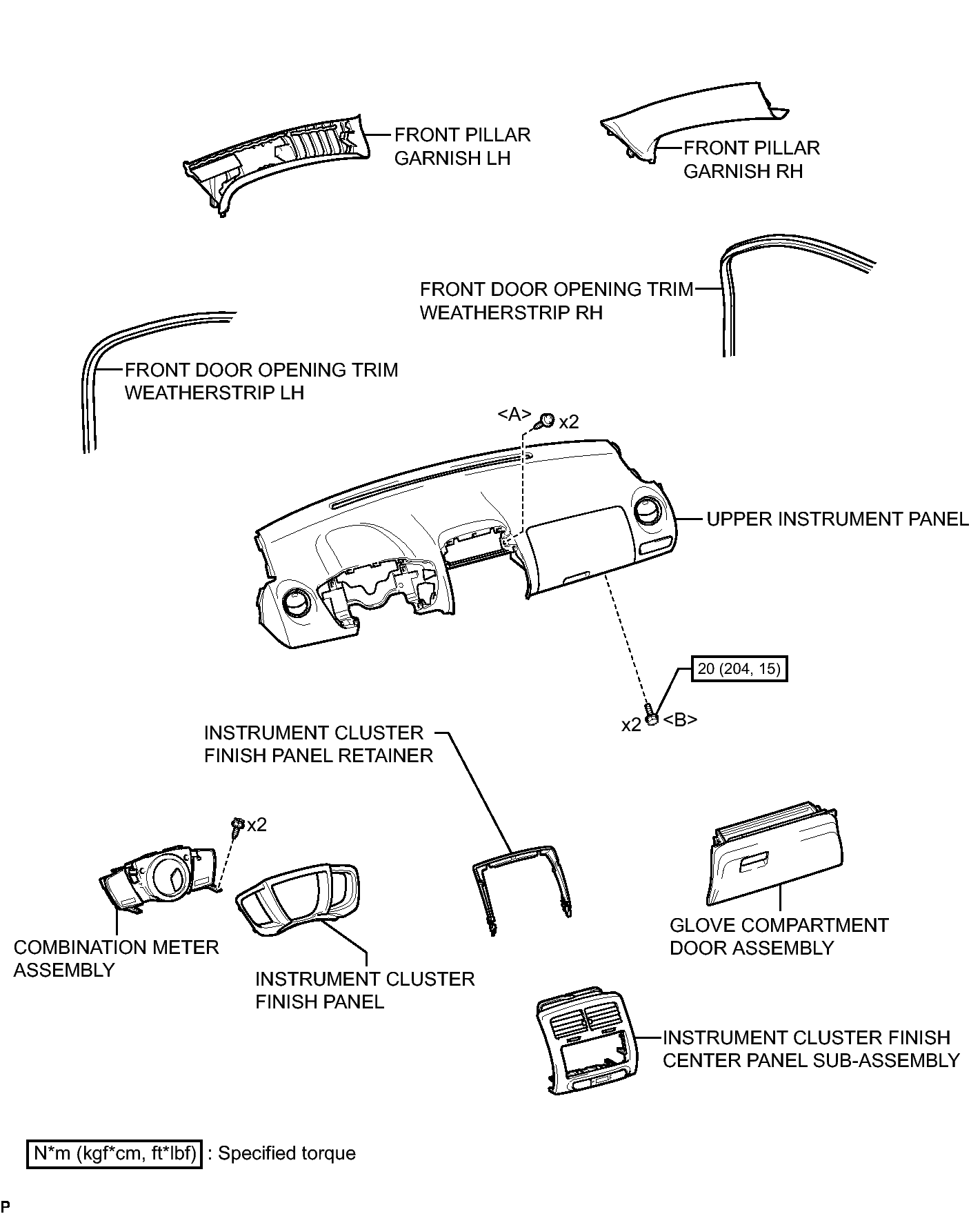

Fig 1: Identifying Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
GTY385413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

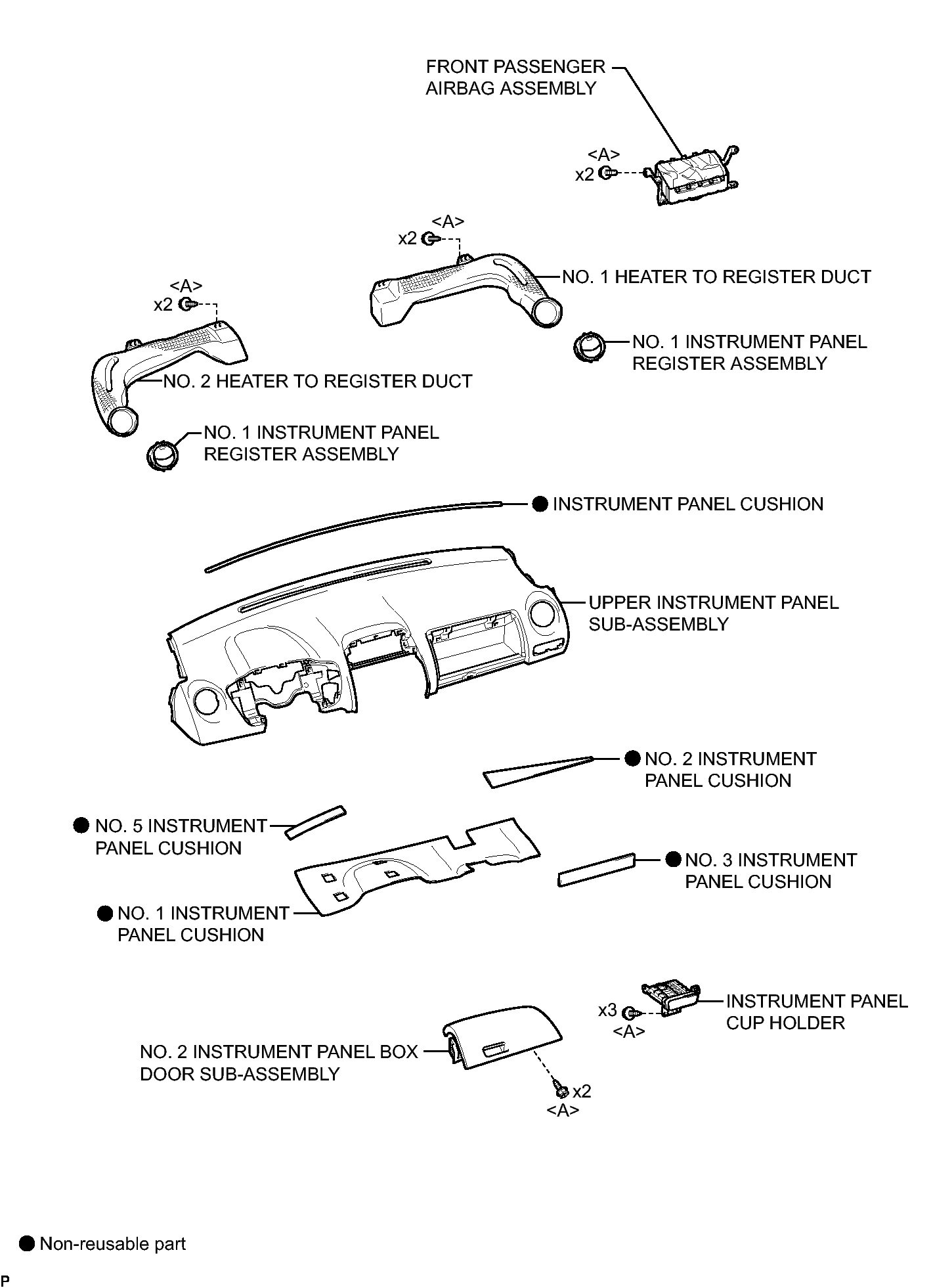

Fig 1: Identifying Upper Instrument Panel Replacement Components With Torque Specifications (2 Of 2)
GTY391364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
