Speed Signal Circuit [05/2013 - 01/2014]: Wiring Diagram

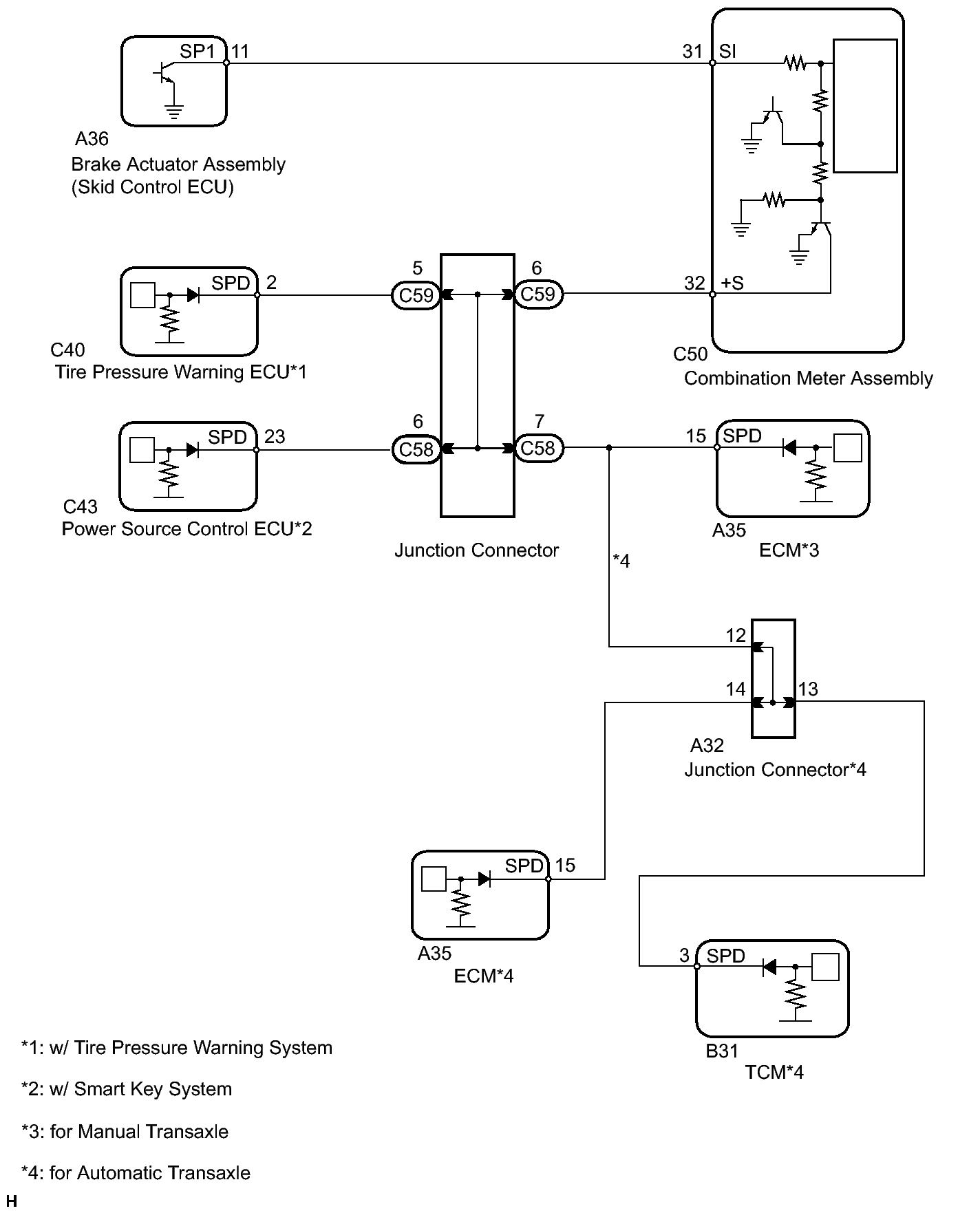

Fig 1: Speed Signal Circuit Diagram

GTY421128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
