Rear Shock Absorber: Components: Illustration

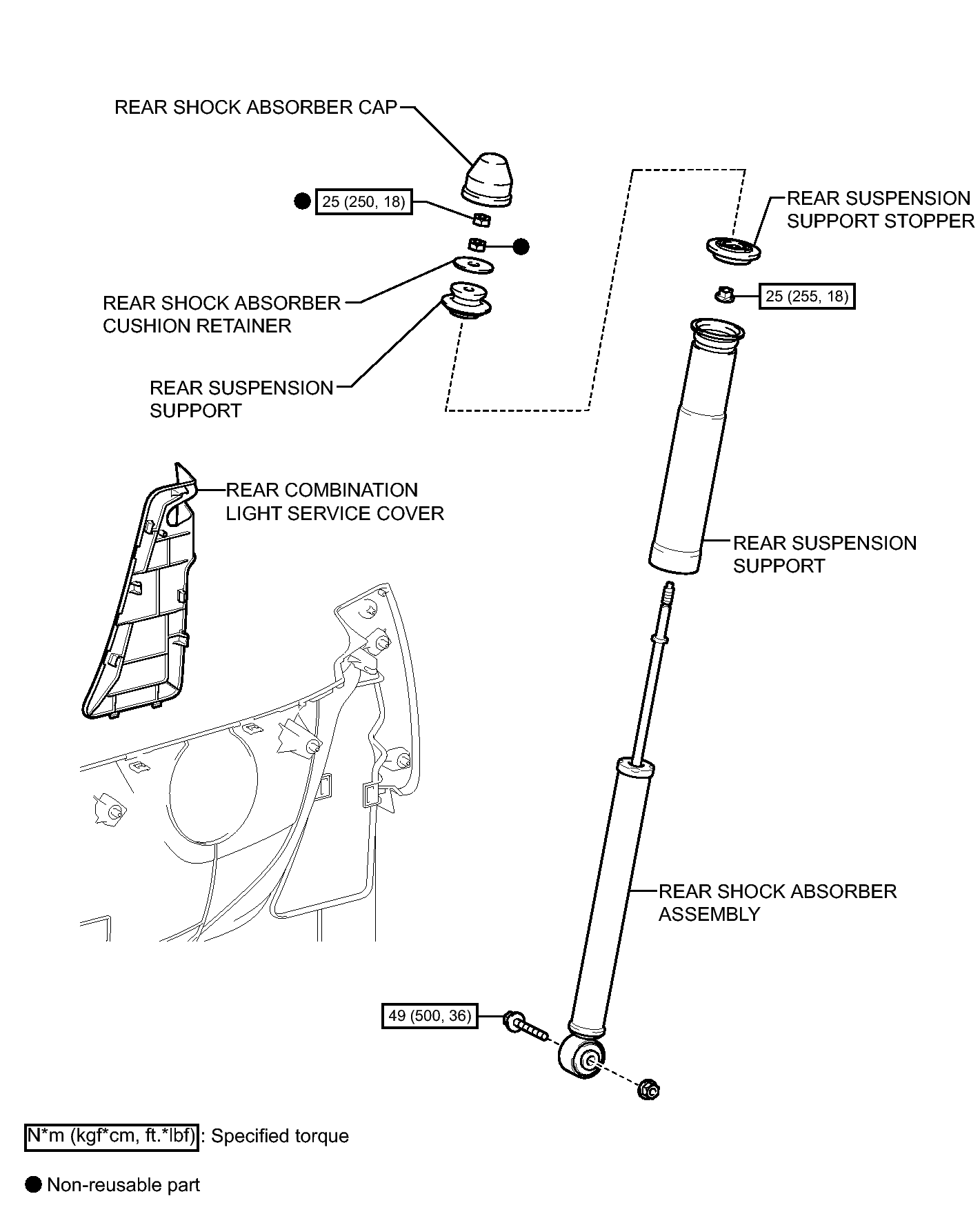

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications

GTY389332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
