SRS Warning Light Remains ON: Wiring Diagram

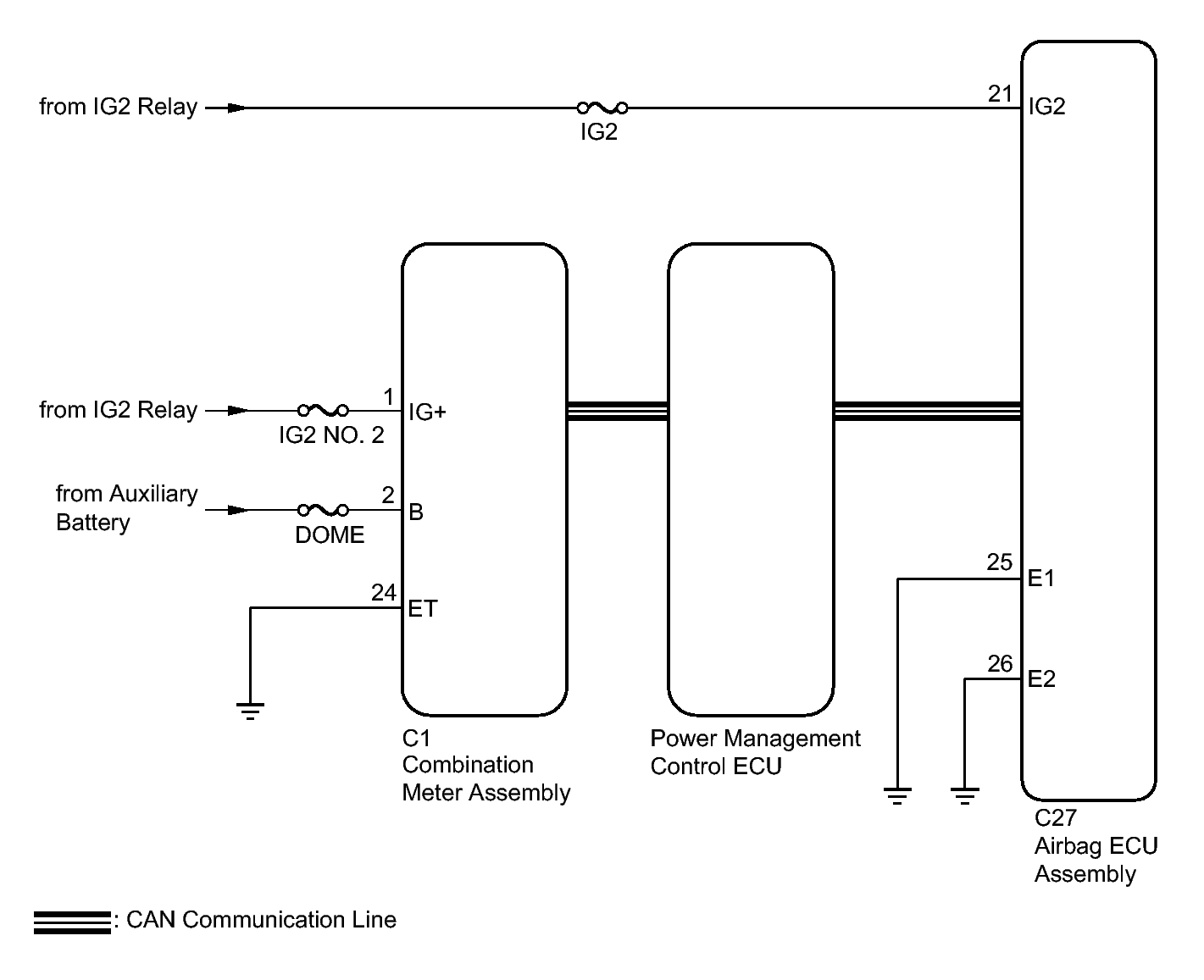

Fig 1: SRS Warning Light Wiring Diagram

GTY392180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
