DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Procedure

  1. CHECK TELLTALE LIGHT ASSEMBLY (FRONT PASSENGER AIRBAG ON/OFF INDICATOR CONDITION)
    1. Turn the power switch on (IG).
    2. Check the front passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the front passenger airbag ON/OFF indicator. Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE .

      Fig 1: Identifying Normal Condition Of Front Passenger Airbag ON/OFF Indicator
      GTY391668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the power switch off.
    4. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      RESULT

      Result Proceed to
      Always ON A
      OFF B

    B → See step   10

    A: Go to next step

  2. CHECK CONNECTION OF CONNECTORS
    1. Check that the connectors are properly connected to the airbag ECU assembly and the telltale light assembly.

      OK

      The connectors are properly connected.

    NG → CONNECT CONNECTORS PROPERLY

    OK: Go to next step

  3. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and telltale light assembly.
    2. Check that the connectors (on the airbag ECU assembly side and telltale light assembly side) are not damaged.

      OK

      The connectors are not deformed or damaged.

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  4. CHECK TELLTALE LIGHT ASSEMBLY (FRONT PASSENGER AIRBAG ON/OFF INDICATOR)
    Fig 2: Identifying Telltale Light Assembly (Front Passenger Airbag ON/OFF Indicator)
    GTY387817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connector to the telltale light assembly.
    2. Connect the negative (-) terminal cable to the auxiliary battery, and wait for at least 2 seconds.
    3. Turn the power switch on (IG).
    4. Check the front passenger airbag ON/OFF indicator operation.

      OK

      The front passenger airbag ON/OFF indicator does not come on.

    5. Turn the power switch off.
    6. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly

    NG → See step   6

    OK: Go to next step

  5. CHECK AIRBAG ECU ASSEMBLY
    1. Connect the connector to the airbag ECU assembly.
    2. Connect the negative (-) terminal cable to the auxiliary battery, and wait for at least 2 seconds.
    3. Turn the power switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
    5. Turn the power switch off.
    6. Turn the power switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1660/43 is not output.

      HINT:

      DTCs other than B1660/43 may be output at this time, but they are not related to this check.

    NG → See step   19

    OK → See step   22

  6. CHECK INSTRUMENT PANEL WIRE (OPEN)
    1. Turn the power switch off.
      Fig 3: Measuring Resistance Of Airbag ECU Assembly & Telltale Light Assembly Connectors
      GTY388929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Disconnect the connector from the telltale light assembly.
    4. Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - C44-1 (P-AB) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Service Wire
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)
      *b Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  7. CHECK INSTRUMENT PANEL WIRE (SHORT)
    1. Disconnect the service wire from connector B.
      Fig 4: Measuring Resistance Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - C44-1 (P-AB) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  8. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
    1. Connect the cable to the negative (-) auxiliary battery terminal.
      Fig 5: Measuring Voltage Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      C44-2 (PAON) - Body ground Power switch on (IG) Below 1 V
      C44-1 (P-AB) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable to the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  9. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 6: Measuring Resistance Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - Body ground Always 1 MΩ or higher
      C44-1 (P-AB) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK → See step   20

  10. CHECK CONNECTION OF CONNECTORS
    1. Check that the connectors are properly connected to the airbag ECU assembly and telltale light assembly.

      OK

      The connectors are properly connected.

    NG → CONNECT CONNECTORS PROPERLY

    OK: Go to next step

  11. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and telltale light assembly.
    2. Check that the connectors (on the airbag ECU assembly side and telltale light assembly side) are not damaged.

      OK

      The connectors are not deformed or damaged.

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  12. CHECK INSTRUMENT PANEL WIRE (OPEN)
    1. Turn the power switch off.

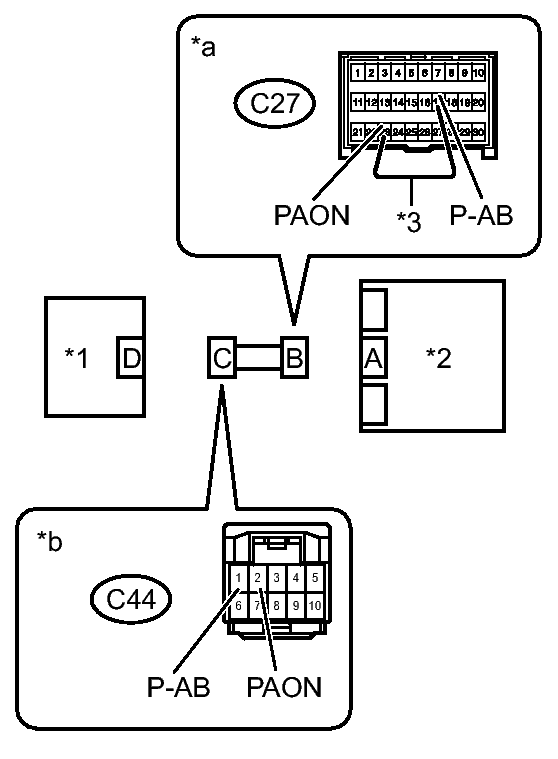

      Fig 7: Measuring Resistance Of Airbag ECU Assembly & Telltale Light Assembly Connectors
      GTY385553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Disconnect the connector from the telltale light assembly.
    4. Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - C44-1 (P-AB) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Service Wire
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)
      *b Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  13. CHECK INSTRUMENT PANEL WIRE (SHORT)
    1. Disconnect the service wire from connector B.
      Fig 8: Measuring Resistance Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - C44-1 (P-AB) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  14. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
    1. Connect the cable to the negative (-) auxiliary battery terminal.
      Fig 9: Measuring Voltage Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      C44-2 (PAON) - Body ground Power switch on (IG) Below 1 V
      C44-1 (P-AB) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable to the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  15. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 10: Measuring Resistance Of Telltale Light Assembly Connector
      GTY387573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      C44-2 (PAON) - Body ground Always 1 MΩ or higher
      C44-1 (P-AB) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  16. CHECK TELLTALE LIGHT ASSEMBLY (FRONT PASSENGER AIRBAG ON/OFF INDICATOR SOURCE VOLTAGE)
    Fig 11: Measuring Voltage Of Telltale Light Assembly Connector
    GTY387942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connectors to the airbag ECU assembly.
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      C44-6 (IG+) - Body ground Power switch on (IG) 11 to 14 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Telltale Light Assembly)

    NG → REPLACE HARNESS AND CONNECTOR (TELLTALE LIGHT ASSEMBLY - AUXILIARY BATTERY)

    OK: Go to next step

  17. CHECK TELLTALE LIGHT ASSEMBLY (FRONT PASSENGER AIRBAG ON/OFF INDICATOR)
    Fig 12: Identifying Airbag ECU Assembly Connector Terminals
    GTY389096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connector to the telltale light assembly.
    2. Disconnect the connectors from the airbag ECU assembly.
    3. Connect the negative (-) terminal cable to the auxiliary battery, and wait for at least 2 seconds.
    4. Turn the power switch on (IG).
    5. Check the indicator according to the value(s) in the table below.

      OK

      Tester Connection Switch Condition Front Passenger Airbag ON/OFF Indicator
      C27-23 (PAON) - Body ground Power switch on (IG) "ON" comes on
      C27-17 (P-AB) - Body ground Power switch on (IG) "OFF" comes on
    6. Turn the power switch off.
    7. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Airbag ECU Assembly)

    NG → See step   23

    OK: Go to next step

  18. CHECK AIRBAG ECU ASSEMBLY
    1. Connect the connectors to the airbag ECU assembly.
    2. Connect the negative (-) terminal cable to the auxiliary battery and wait for at least 2 seconds.
    3. Turn the power switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
    5. Turn the power switch off.
    6. Turn the power switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1660/43 is not output.

      HINT:

      DTCs other than B1660/43 may be output at this time, but they are not related to this check.

    NG → See step   24

    OK → See step   21

  19. REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL
  20. REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL
  21. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
  22. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
  23. REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL
  24. REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL
scientia non olet · About LEMON Manuals
