DTC B1653/35: Seat Position Airbag Sensor Circuit Malfunction: Wiring Diagram

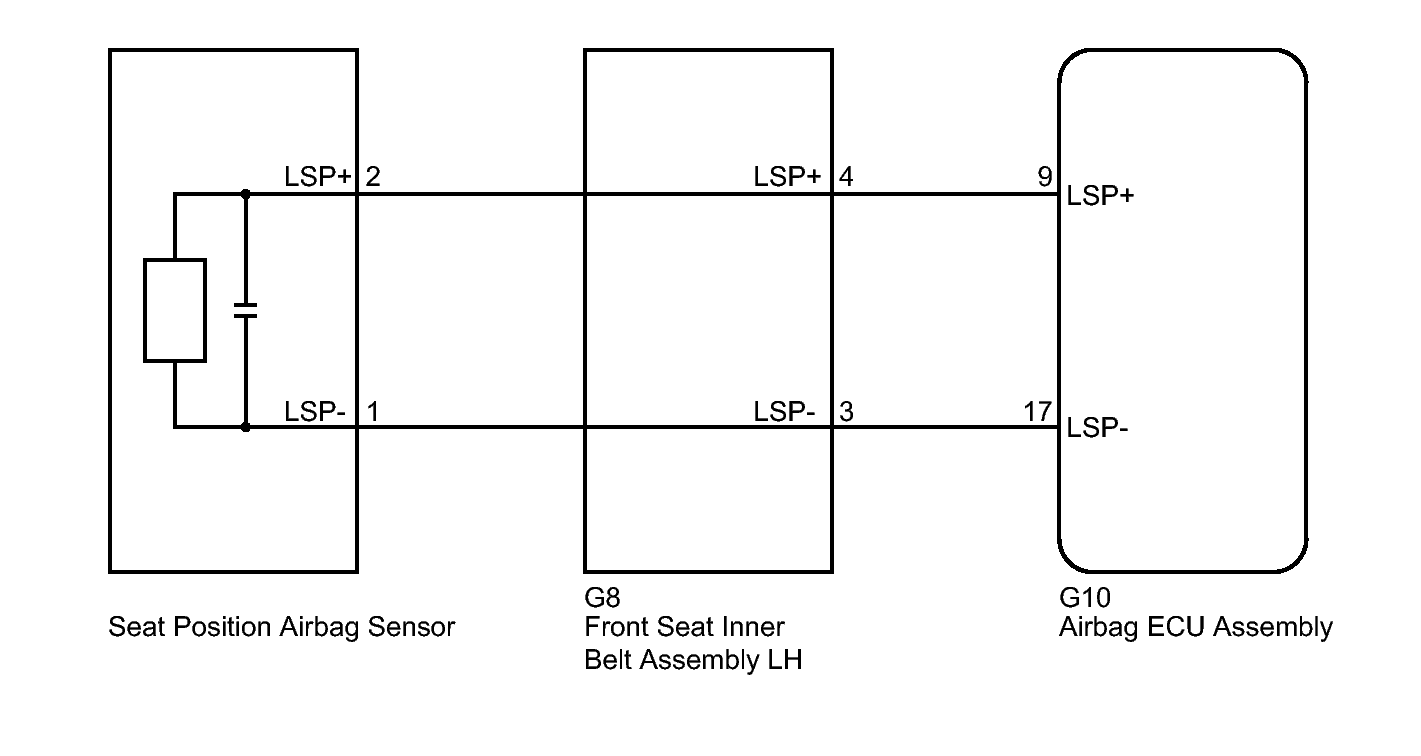

Fig 1: Seat Position Airbag Sensor Wiring Diagram

GTY385833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
