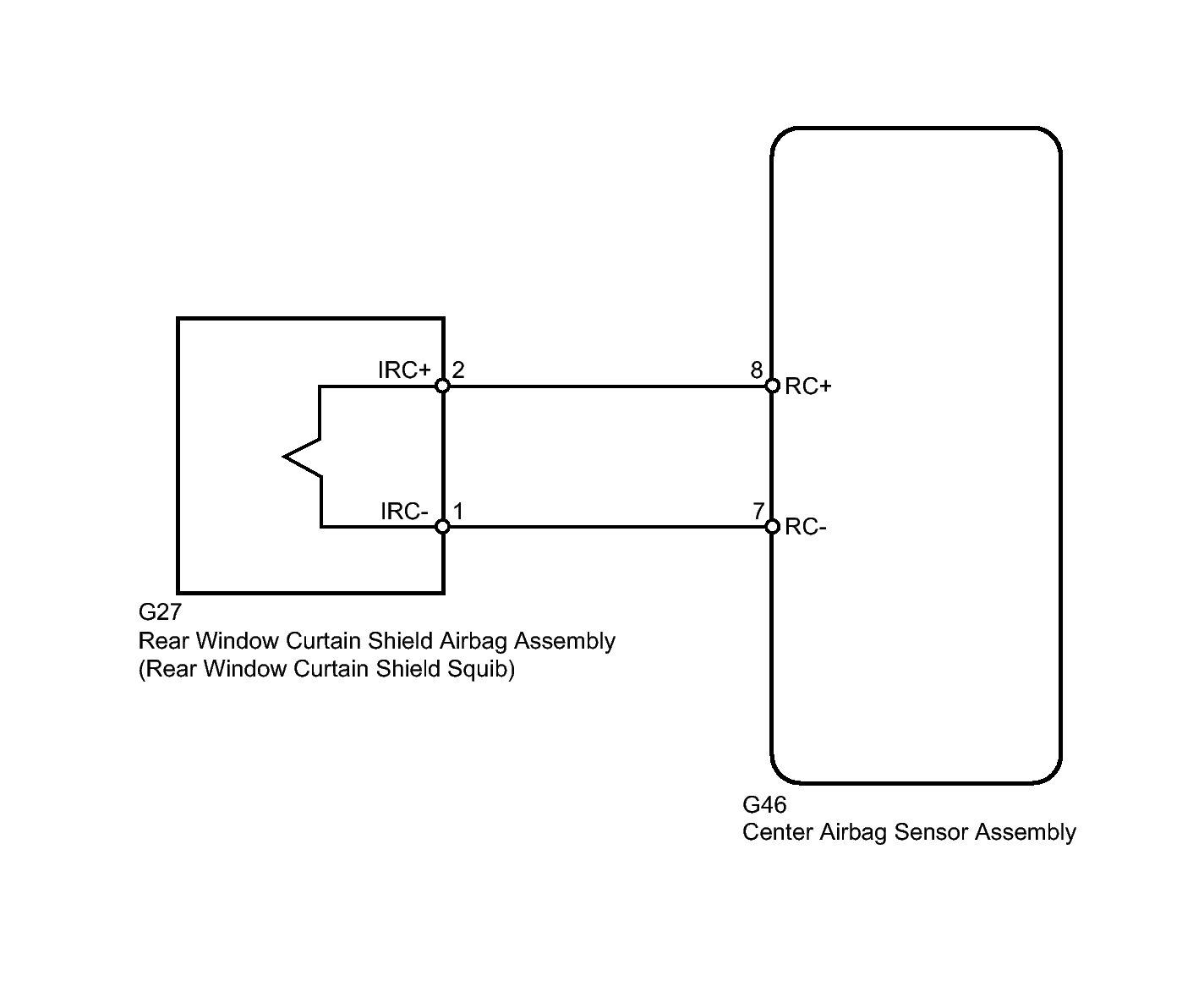

DTC B1890/71: Short in Rear Window Curtain Shield Airbag Squib Circuit; DTC B1891/71: Open in Rear Window Curtain Shield Airbag Squib Circuit; DTC B1892/71: Short to GND in Rear Window Curtain Shield Airbag Squib Circuit; DTC B1893/71: Short to B+ in Rear Window Curtain Shield Airbag Squib Circuit [05/2013 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
