DTC P0A1B-168: Drive Motor "A" Control Module; DTC P0A1B-795: Drive Motor "A" Control Module; DTC P0A1B-796: Drive Motor "A" Control Module: Wiring Diagram

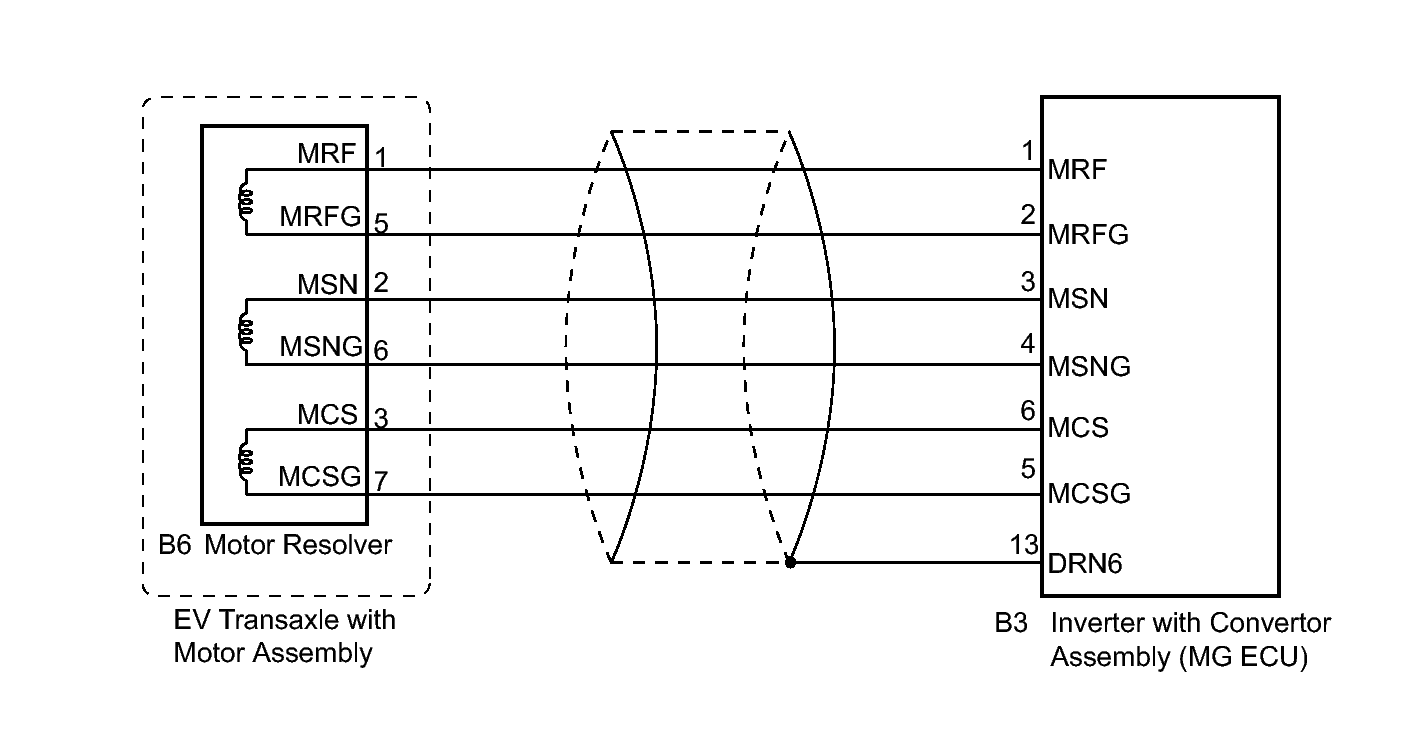

Fig 1: EV Transaxle With Motor Assembly Wiring Diagram
GTY386217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
