DTC P0A09-591: DC / DC Converter Status Circuit Low Input: Wiring Diagram

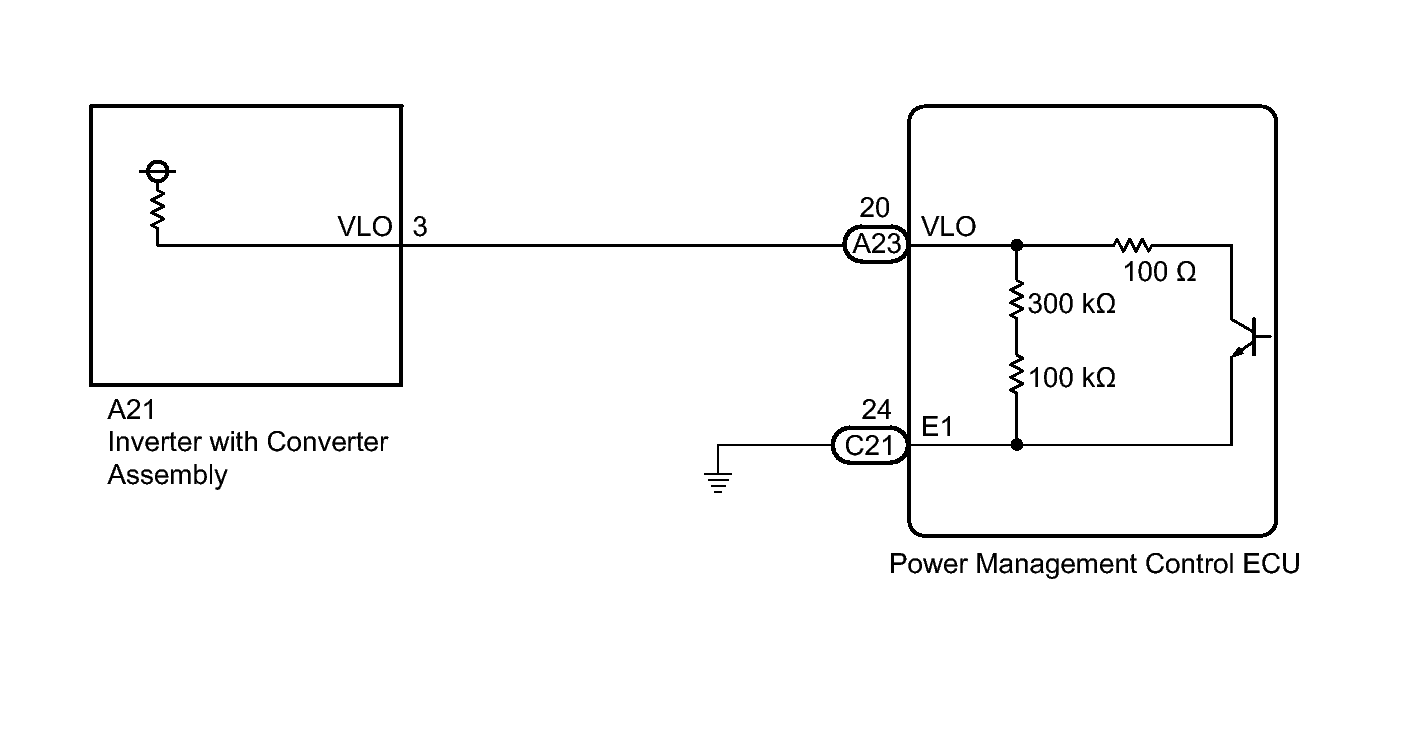

Fig 1: Inverter With Converter Assembly Wiring Diagram

GTY390912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
