DTC P0A08-264: DC / DC Converter Status Circuit: Wiring Diagram

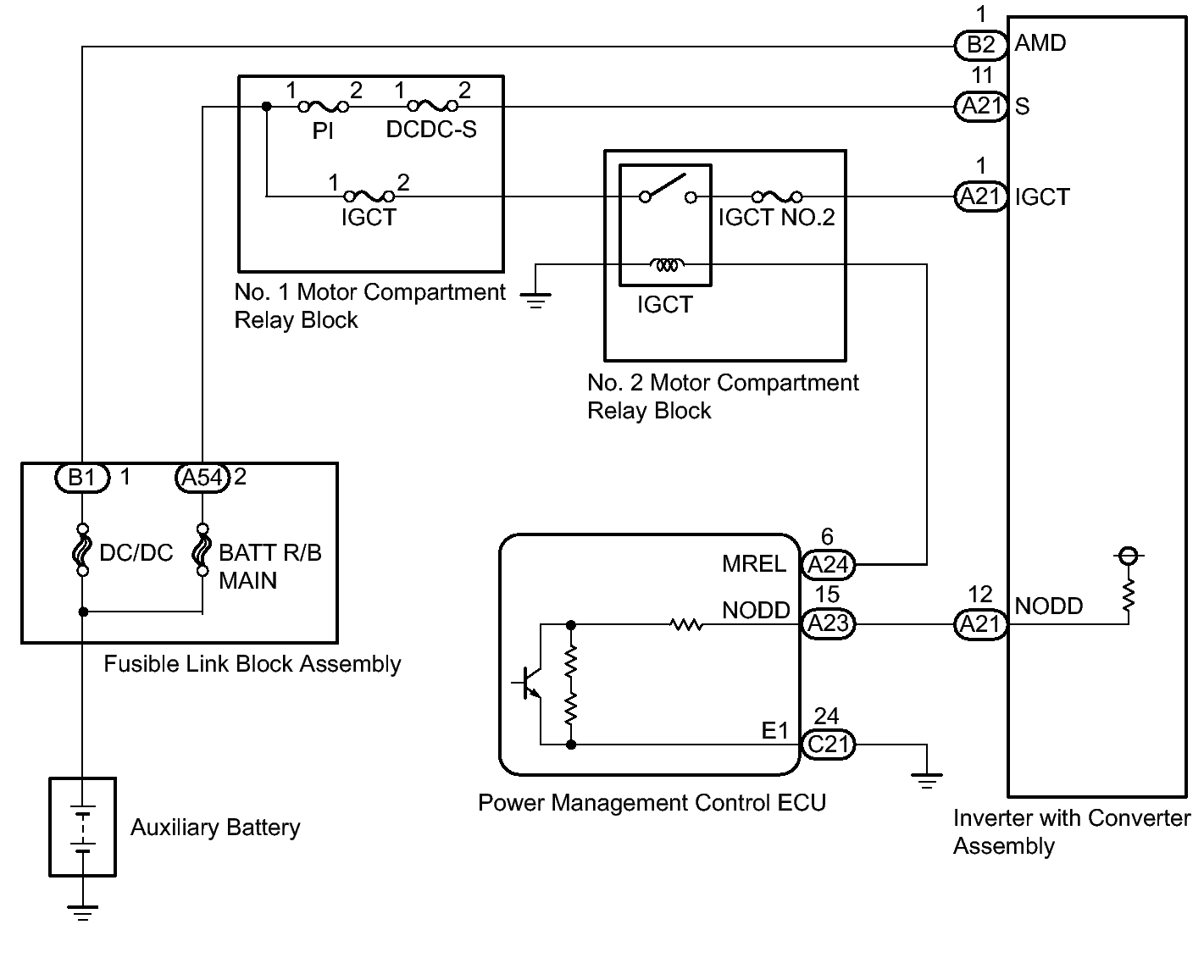

Fig 1: Inverter With Converter Assembly Wiring Diagram

GTY390009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
