Rear Brake Flexible Hose: Components: Illustration

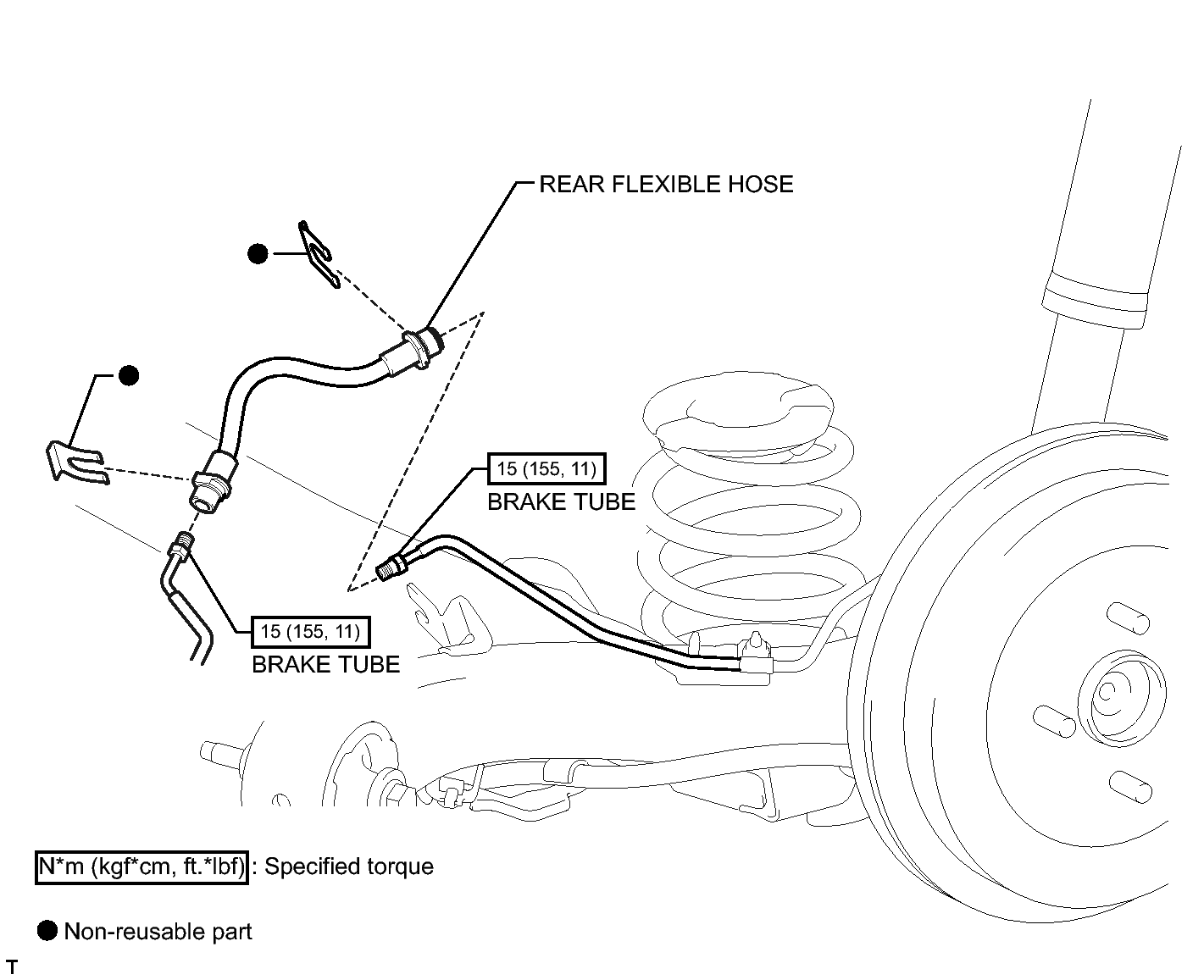

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications

GTY387099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
