Brake Booster Pump: Components: Illustration

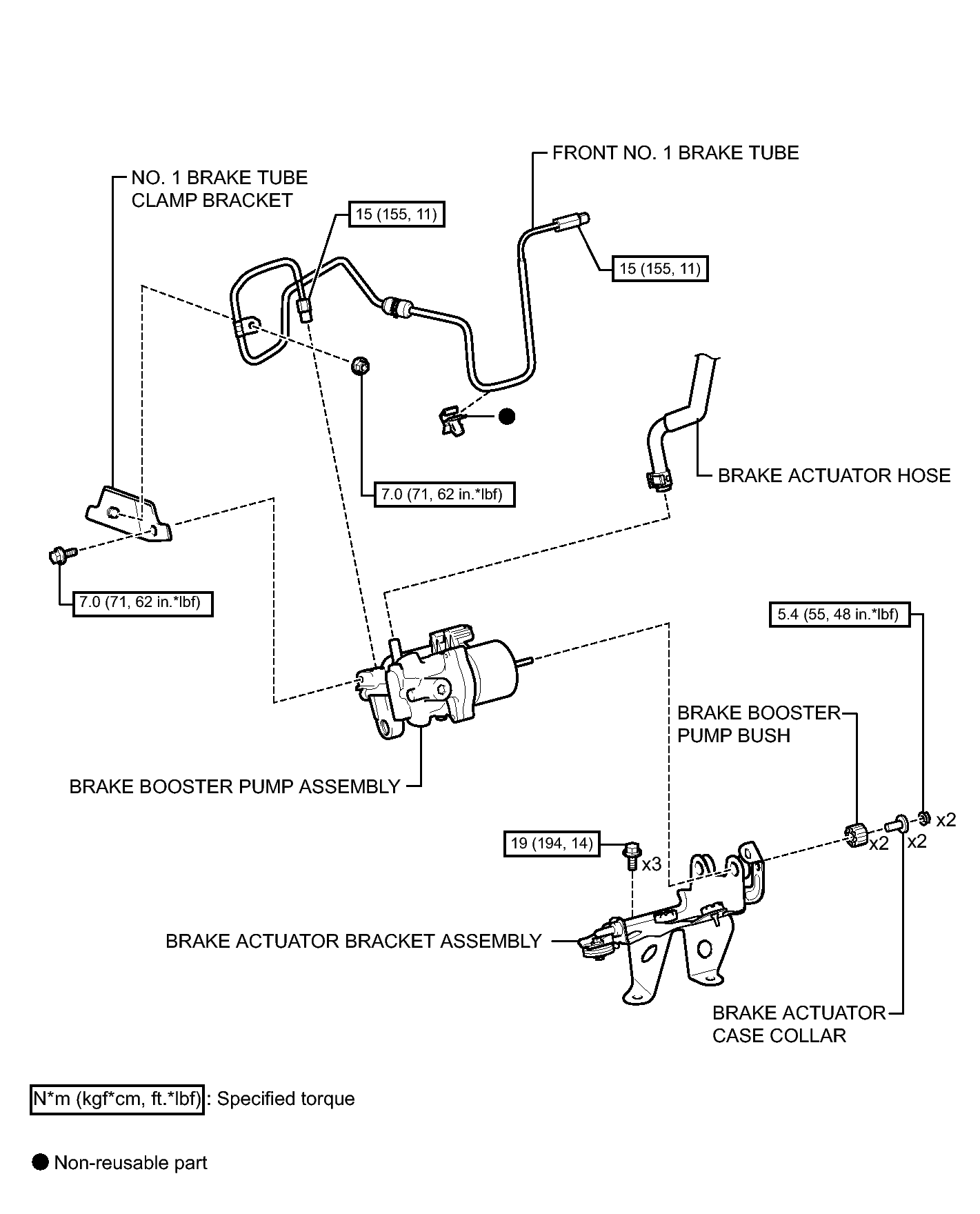

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications

GTY390115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
