Parts Location: Illustration

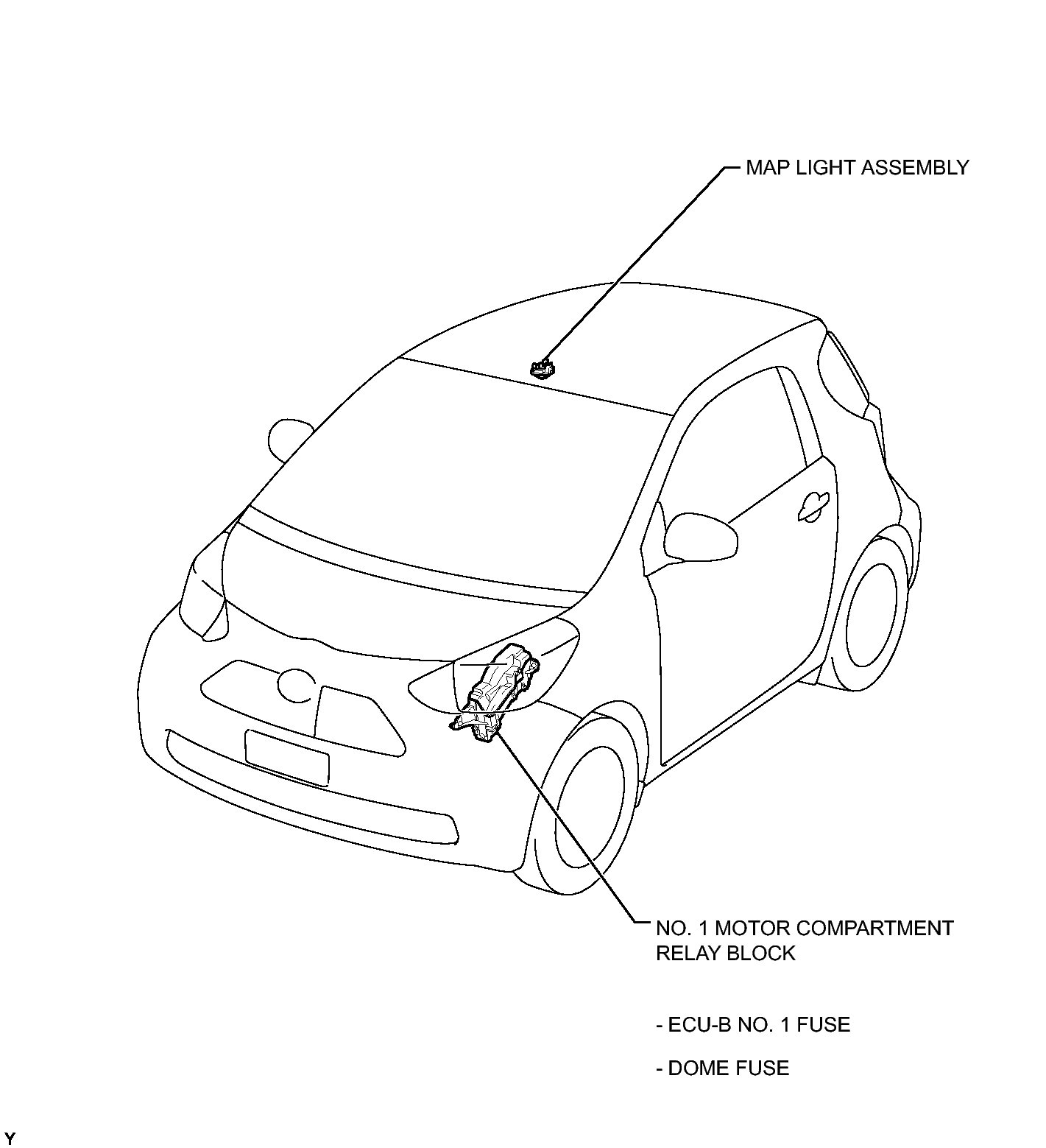

Fig 1: Identifying Lighting System Replacement Components Location (1 Of 3)
GTY386467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

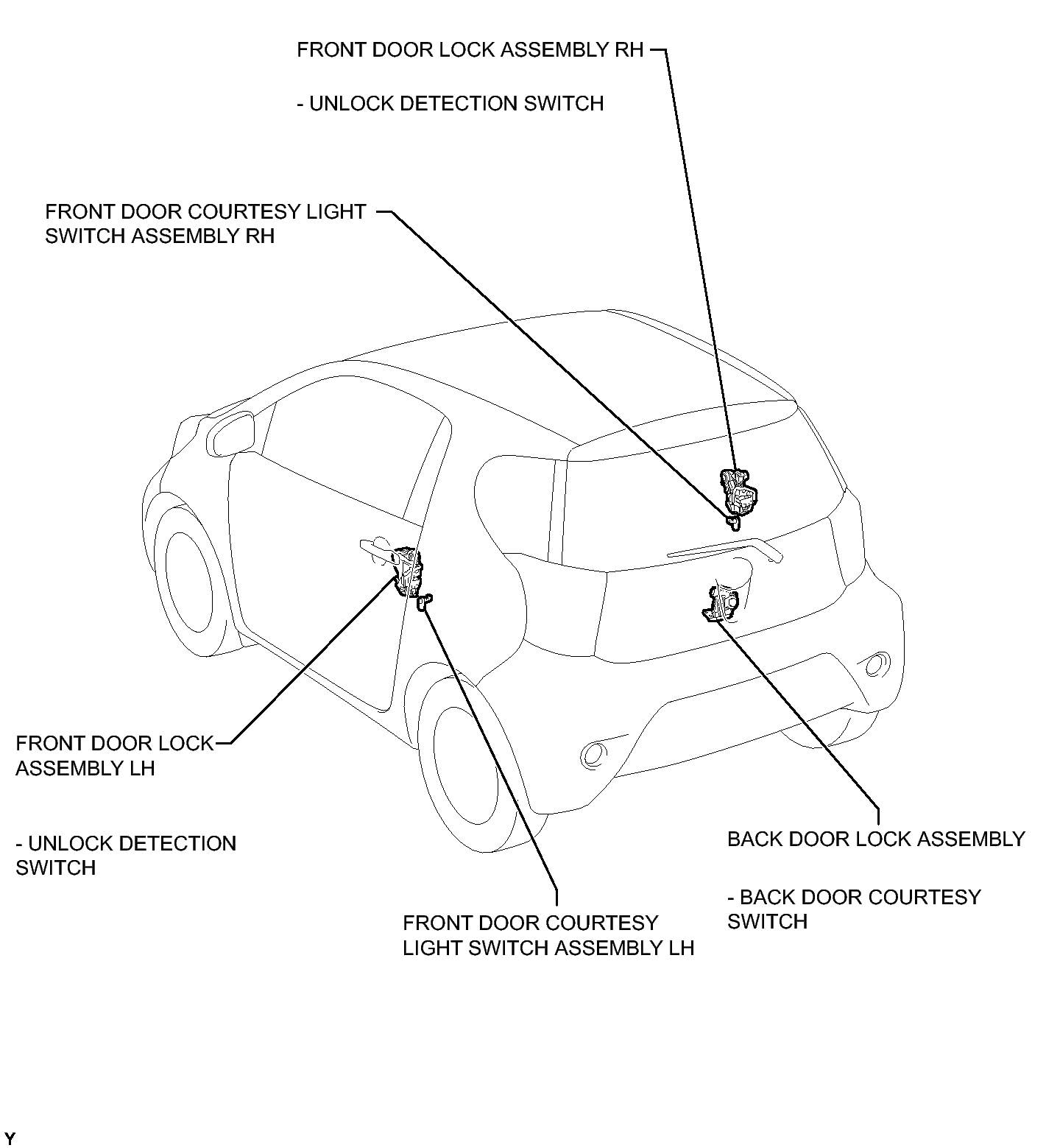

Fig 1: Identifying Lighting System Replacement Components Location (2 Of 3)
GTY389588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

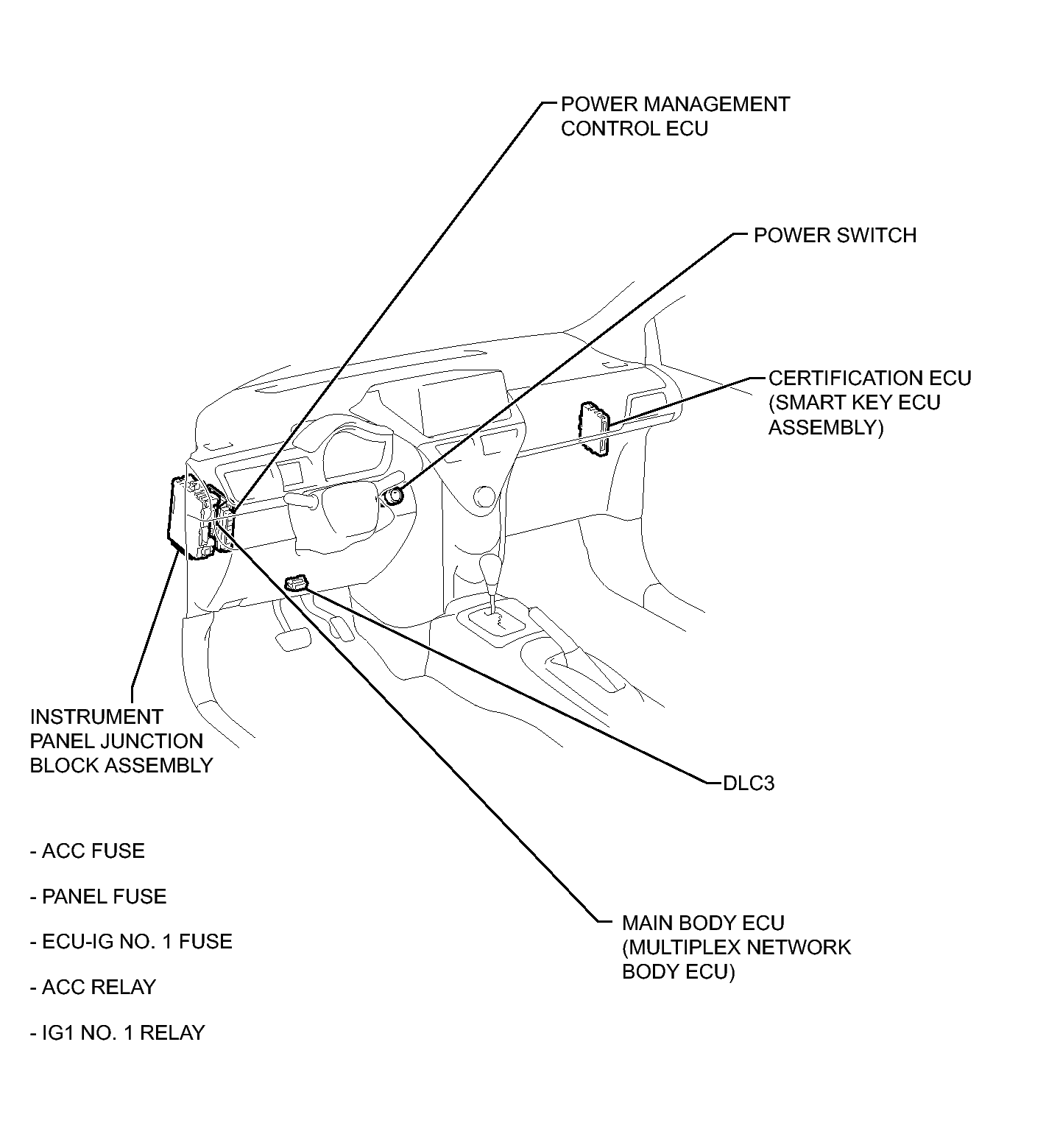

Fig 1: Identifying Lighting System Replacement Components Location (3 Of 3)
GTY386779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
