Stop Light Switch: Components: Illustration

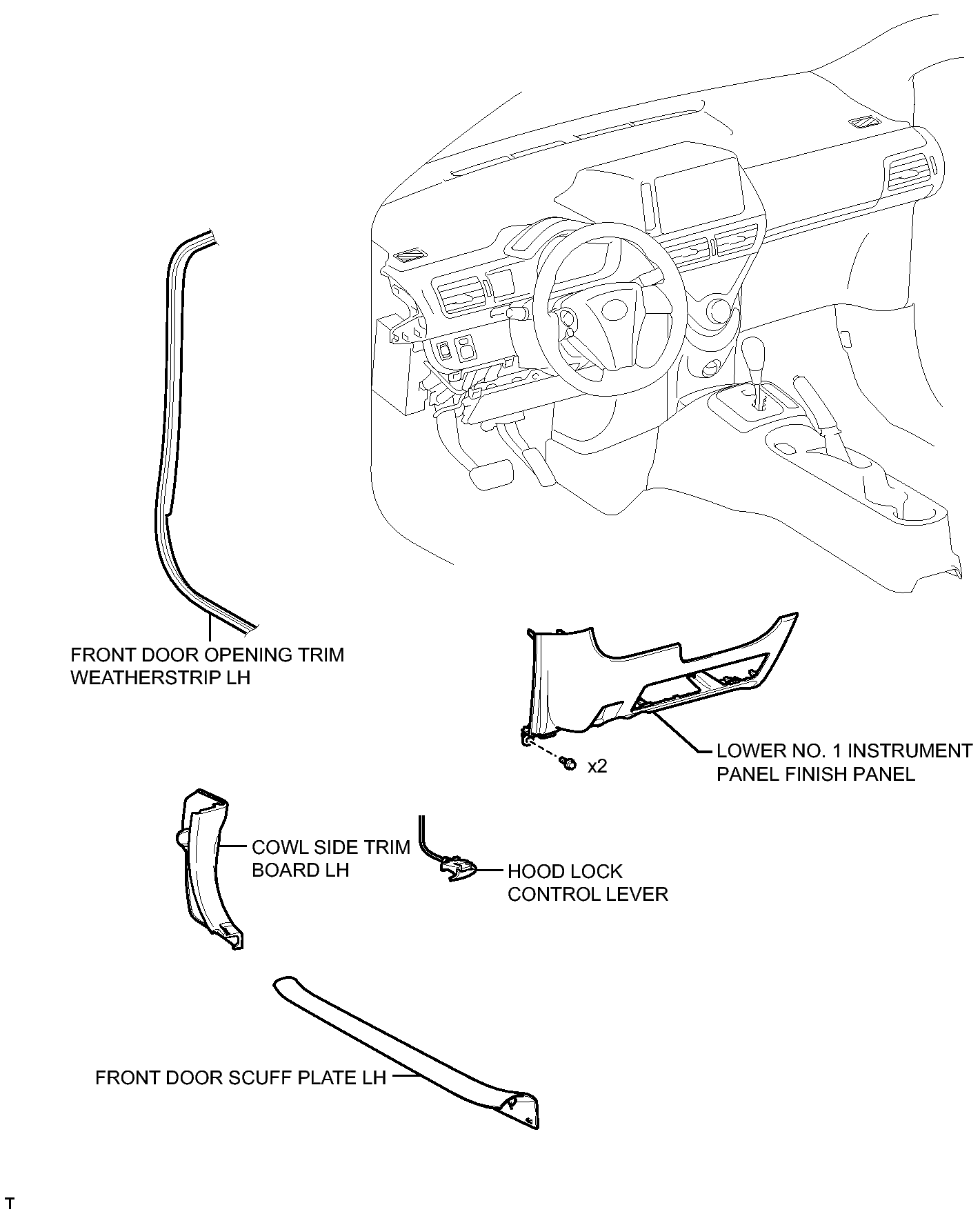

Fig 1: Identifying Stop Light Switch Replacement Components (1 Of 2)
GTY386209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

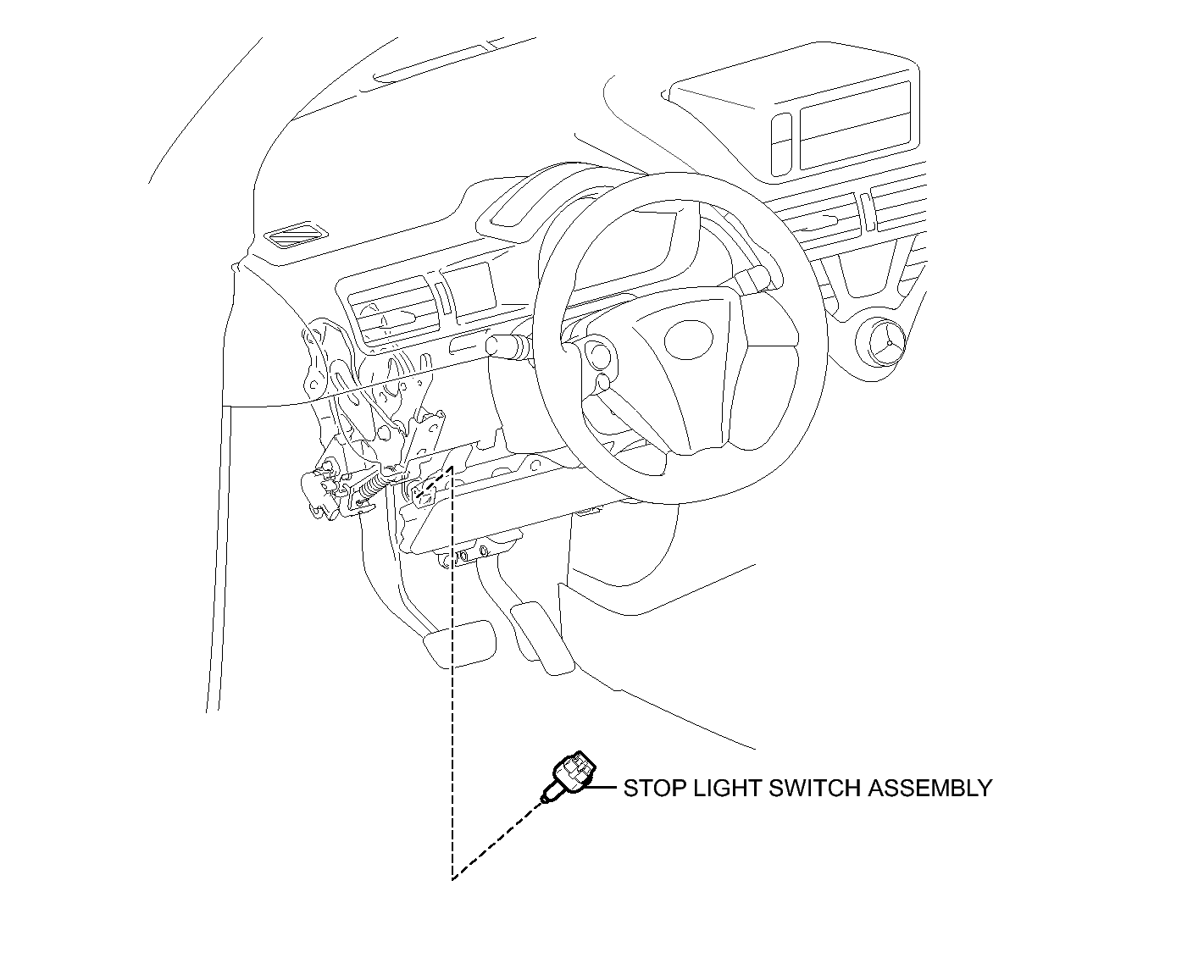

Fig 1: Identifying Stop Light Switch Replacement Components (2 Of 2)
GTY388031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
