Side Turn Signal Light Assembly: Components: Illustration

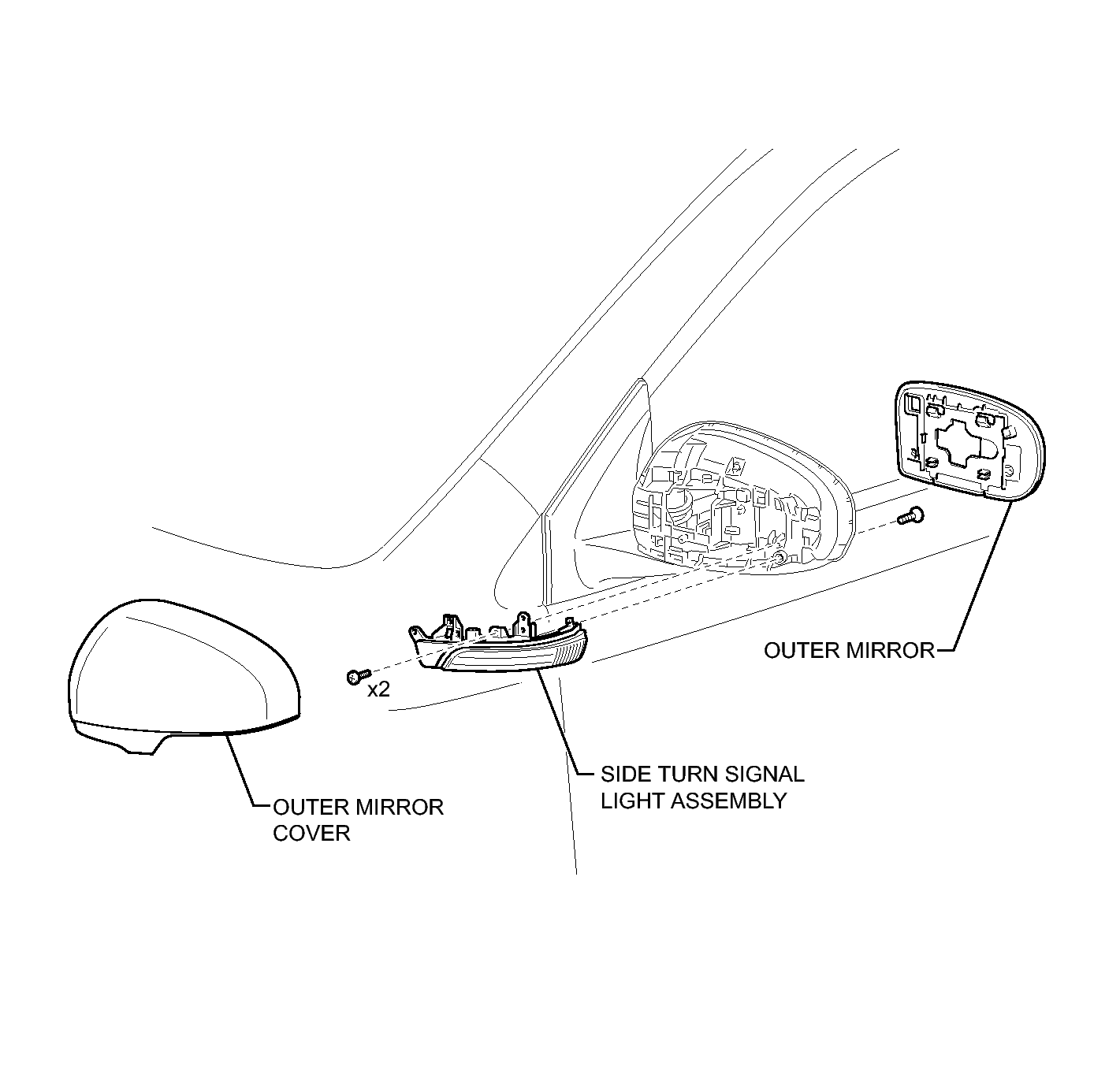

Fig 1: Identifying Side Turn Signal Light Assembly Replacement Components

GTY390381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
