High Mounted Stop Light Assembly: Components: Illustration

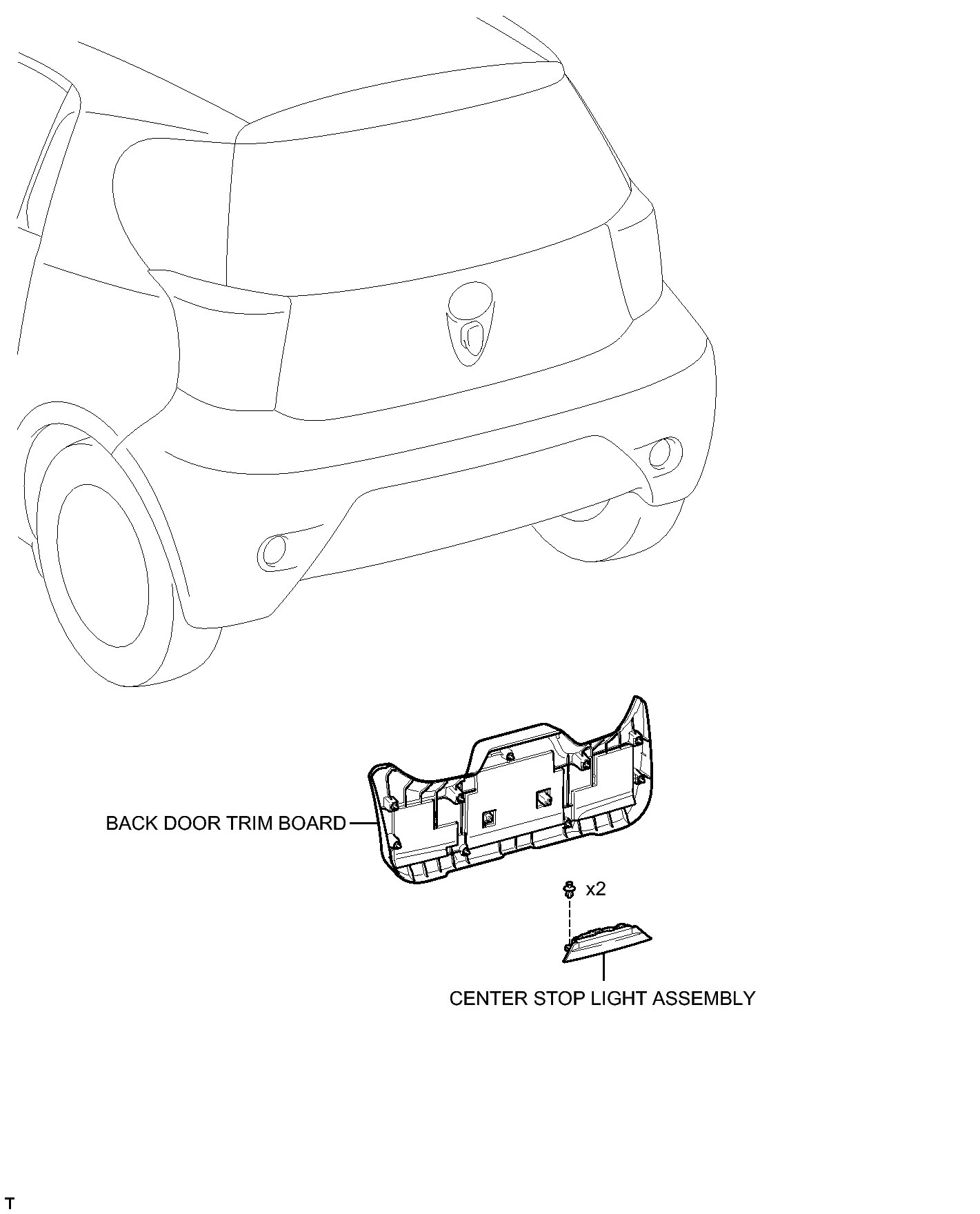

Fig 1: Identifying High Mounted Stop Light Assembly Replacement Components

GTY389219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
