Hazard Warning Switch: Components: Illustration

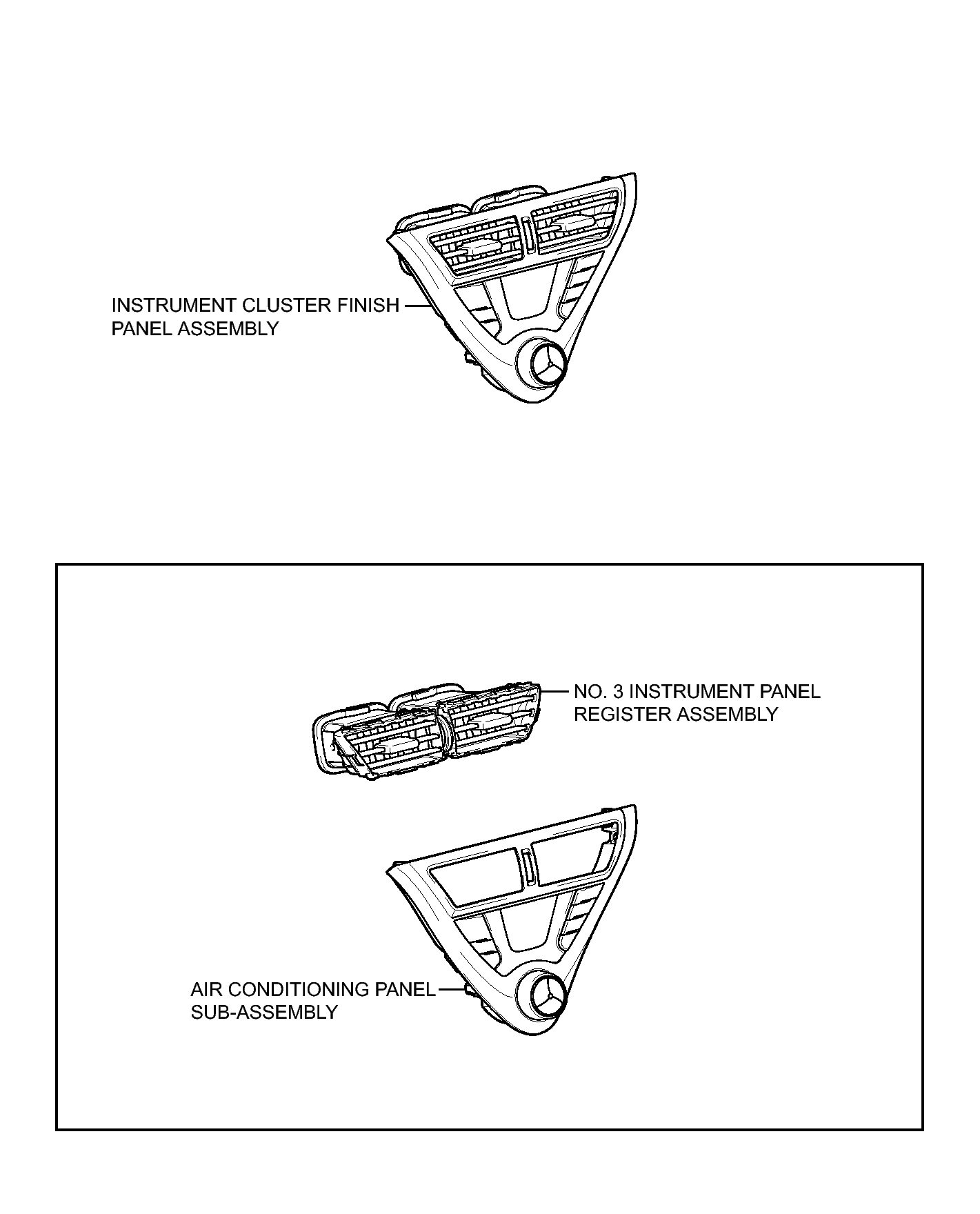

Fig 1: Identifying Hazard Warning Switch Replacement Components (1 Of 2)
GTY388343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

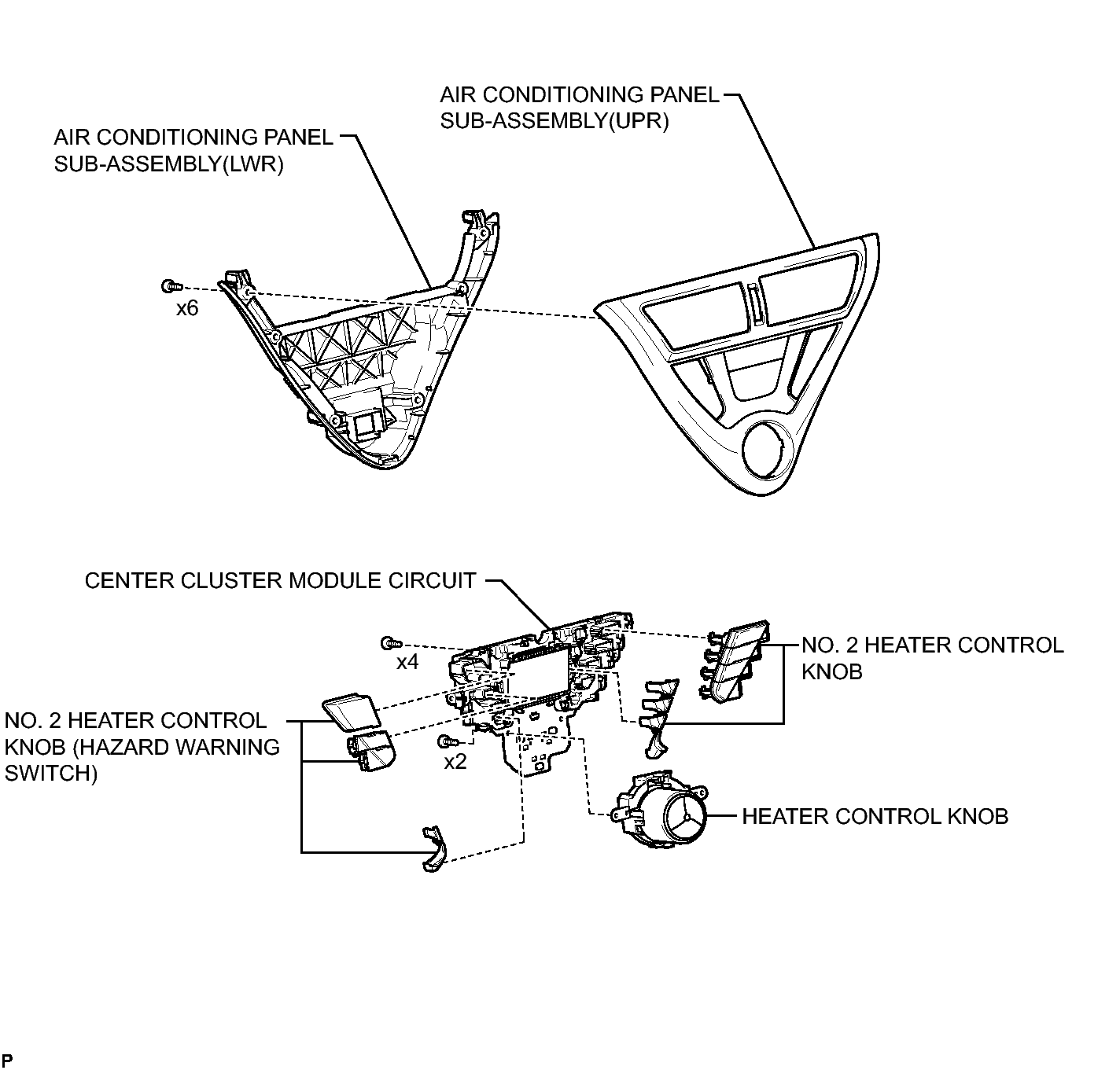

Fig 1: Identifying Hazard Warning Switch Replacement Components (2 Of 2)
GTY388026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
