DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0336: Crankshaft Position Sensor Range / Performance: Wiring Diagram

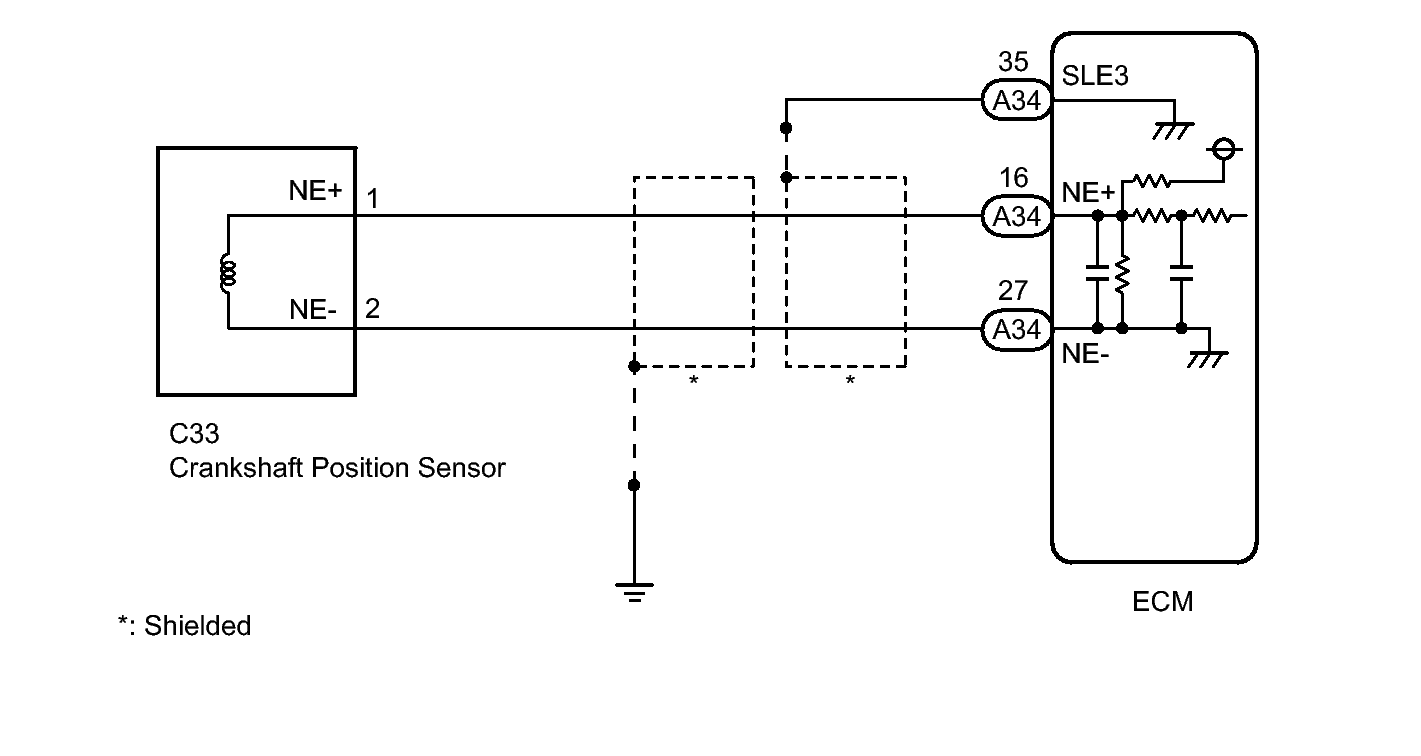

Fig 1: Crankshaft Position Sensor Wiring Diagram
GTY421529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
