Removal [07/2013 - ]

REMOVE FRONT SEAT ASSEMBLY
Refer to REMOVAL [07/2013 - ]
REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side) . Refer to DISASSEMBLY [07/2013 - ] - Step 5
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
1. Disconnect the rubber band of the separate type front seatback cover.

  Fig 1: Identifying Front Seatback Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the claw and the 3 clamps under the front seat assembly.

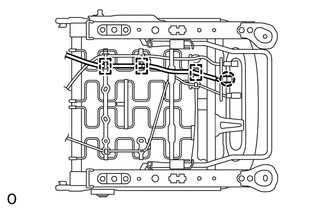

  Fig 2: Locating Claw And The 3 Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 clamps.

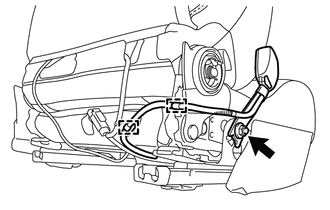

  Fig 3: Locating 2 Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut, washer and front seat inner belt assembly.
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)
1. Disconnect the connector.

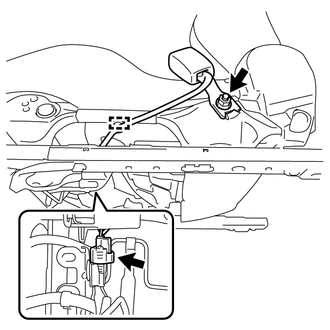

  Fig 4: Locating Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp.
3. Remove the nut, washer and front seat inner belt assembly.
