Installation [07/2013 - ]

INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
1. Install the front seat inner belt assembly with the nut and washer.

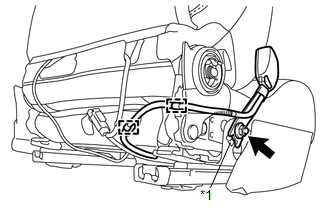

  Fig 1: Locating Front Seat Inner Belt Assembly, Nut And Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.
  TEXT IN ILLUSTRATION

  *1 Protruding Part
2. Engage the 2 clamps.
3. Engage the claw and 3 clamps under the front seat assembly.
4. Connect the rubber band of the separate type front seatback cover.
INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side) . Refer to DISASSEMBLY [07/2013 - ] - Step 5
INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)
1. Install the front seat inner belt assembly with the nut and washer.

  Fig 2: Locating Front Seat Inner Belt Assembly & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.
  TEXT IN ILLUSTRATION

  *1 Protruding Part
2. Engage the clamp.
3. Connect the connector.
INSTALL FRONT SEAT ASSEMBLY
Refer to INSTALLATION [07/2013 - ]
