Removal [07/2013 - ]

REMOVE SEPARATE TYPE REAR SEAT CUSHION ASSEMBLY . Refer to REMOVAL [07/2013 - ] - Step 1
REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY . Refer to REMOVAL [07/2013 - ] - Step 4
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
1. Remove the 2 bolts and child restraint seat anchor bracket sub-assembly.

  Fig 1: Locating 2 Bolts And Child Restraint Seat Anchor Bracket Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE . Refer to REMOVAL [07/2013 - ] - Step 11
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
HINT:

Disconnect the front door opening trim weatherstrip to the extent that allows the removal of the luggage compartment trim cover.
REMOVE LUGGAGE COMPARTMENT TRIM COVER . Refer to REMOVAL [07/2013 - ] - Step 9
REMOVE REAR SEAT HINGE SUB-ASSEMBLY
1. Remove the 3 bolts and rear seat hinge sub-assembly.

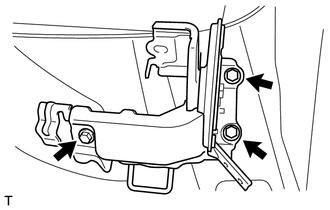

  Fig 2: Locating 3 Bolts And Rear Seat Hinge Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
