Parts Location [07/2013 - ]: Illustration

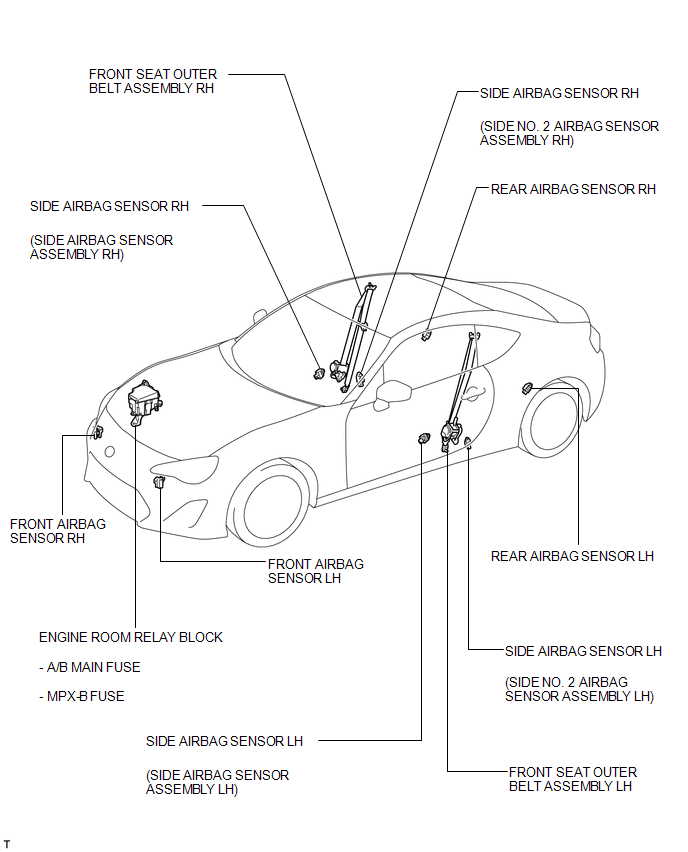

Fig 1: Identifying Airbag System Replacement Components (1 Of 4)
GTY387670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

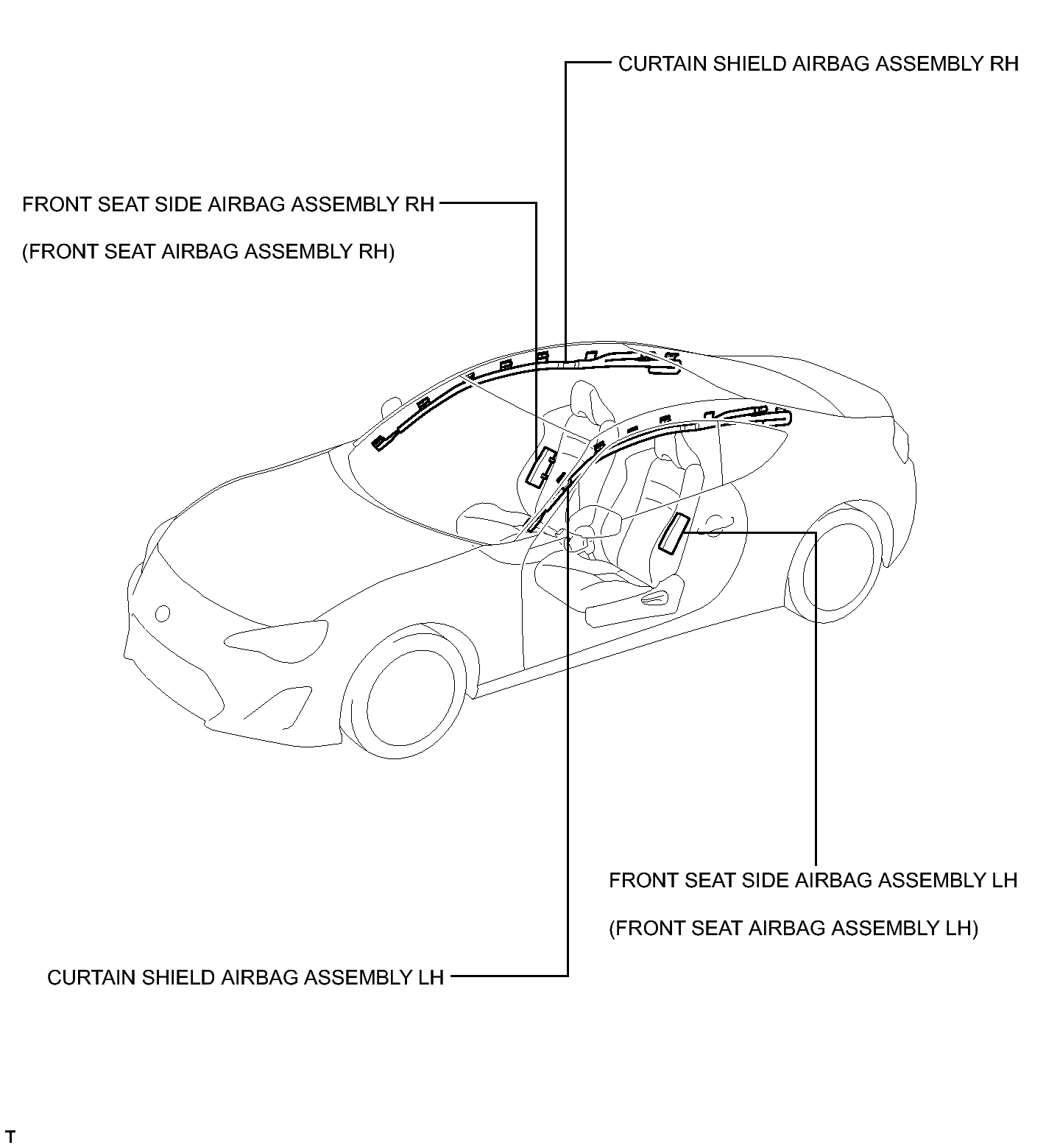

Fig 1: Identifying Airbag System Replacement Components (2 Of 4)
GTY391208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

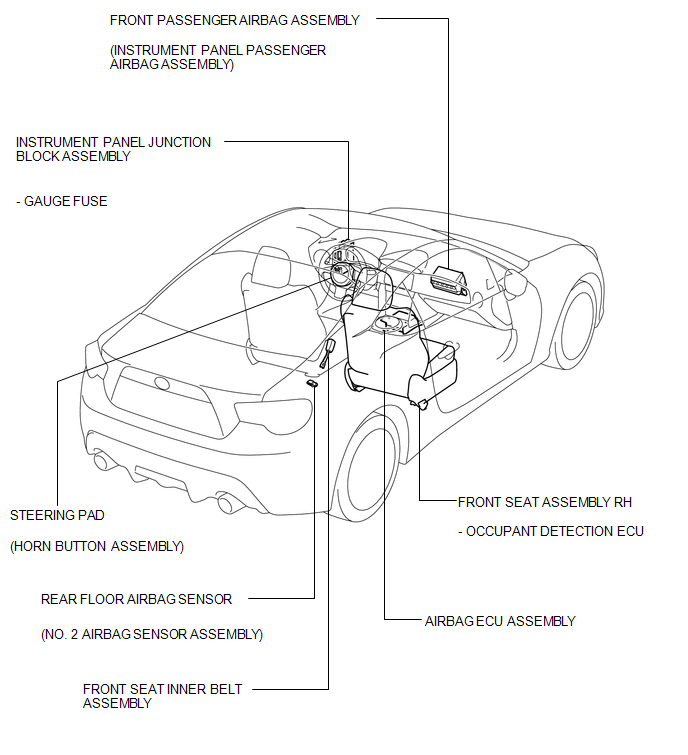

Fig 1: Identifying Airbag System Replacement Components (3 Of 4)
GTY390942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

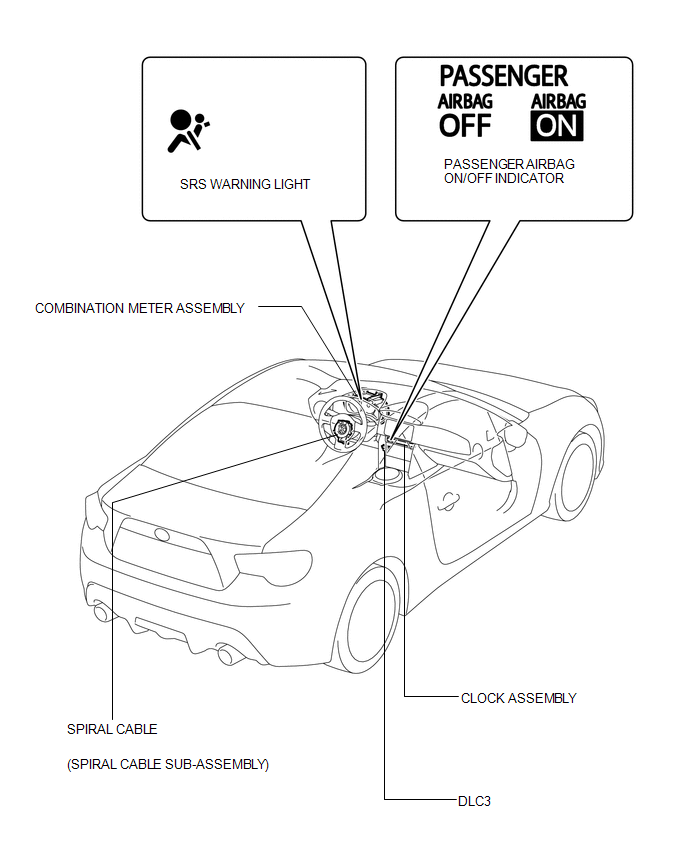

Fig 1: Identifying Airbag System Replacement Components (4 Of 4)
GTY388658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
