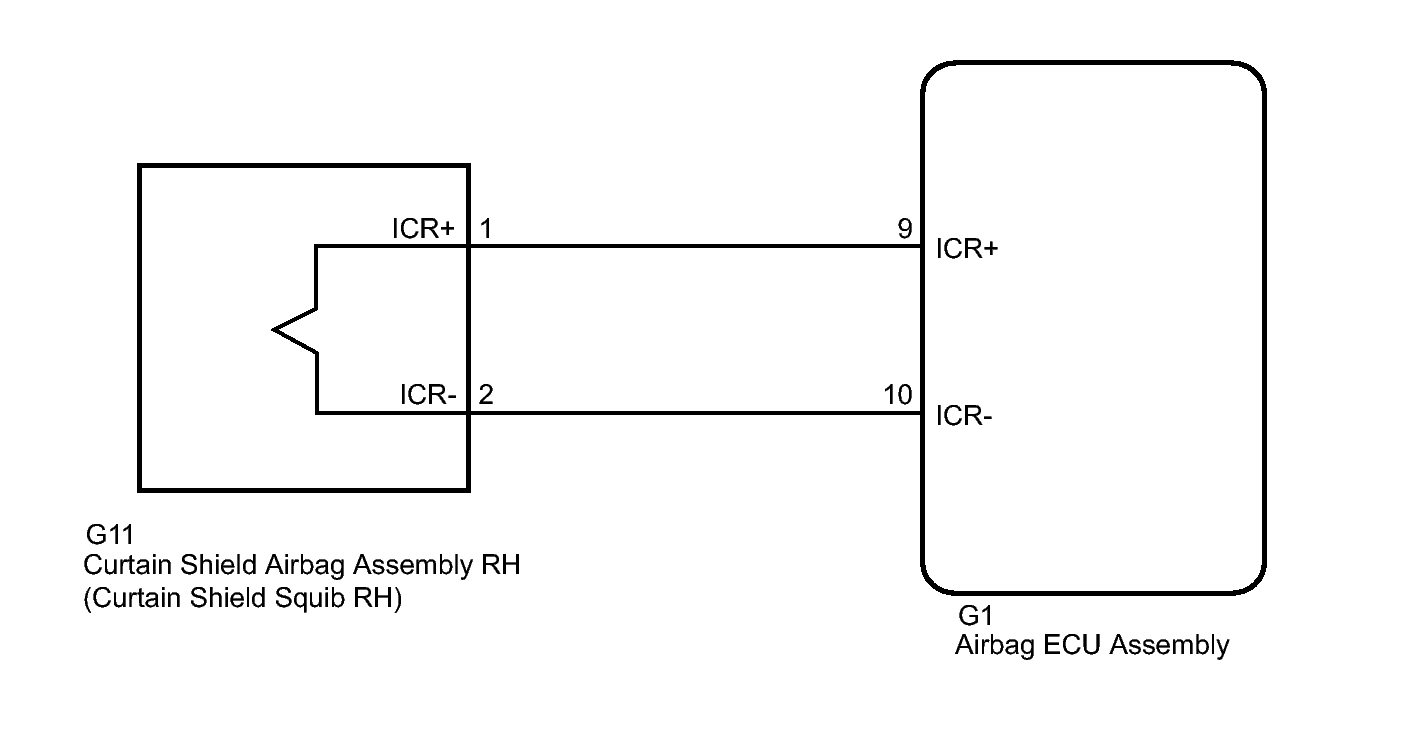

DTC B1830: Short in Curtain Shield Airbag (RH) Squib Circuit; DTC B1831: Open in Curtain Shield Airbag (RH) Squib Circuit; DTC B1832: Short in Curtain Shield Airbag (RH) Squib Circuit (to Ground); DTC B1833: Short in Curtain Shield Airbag (RH) Squib Circuit (to +B): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
