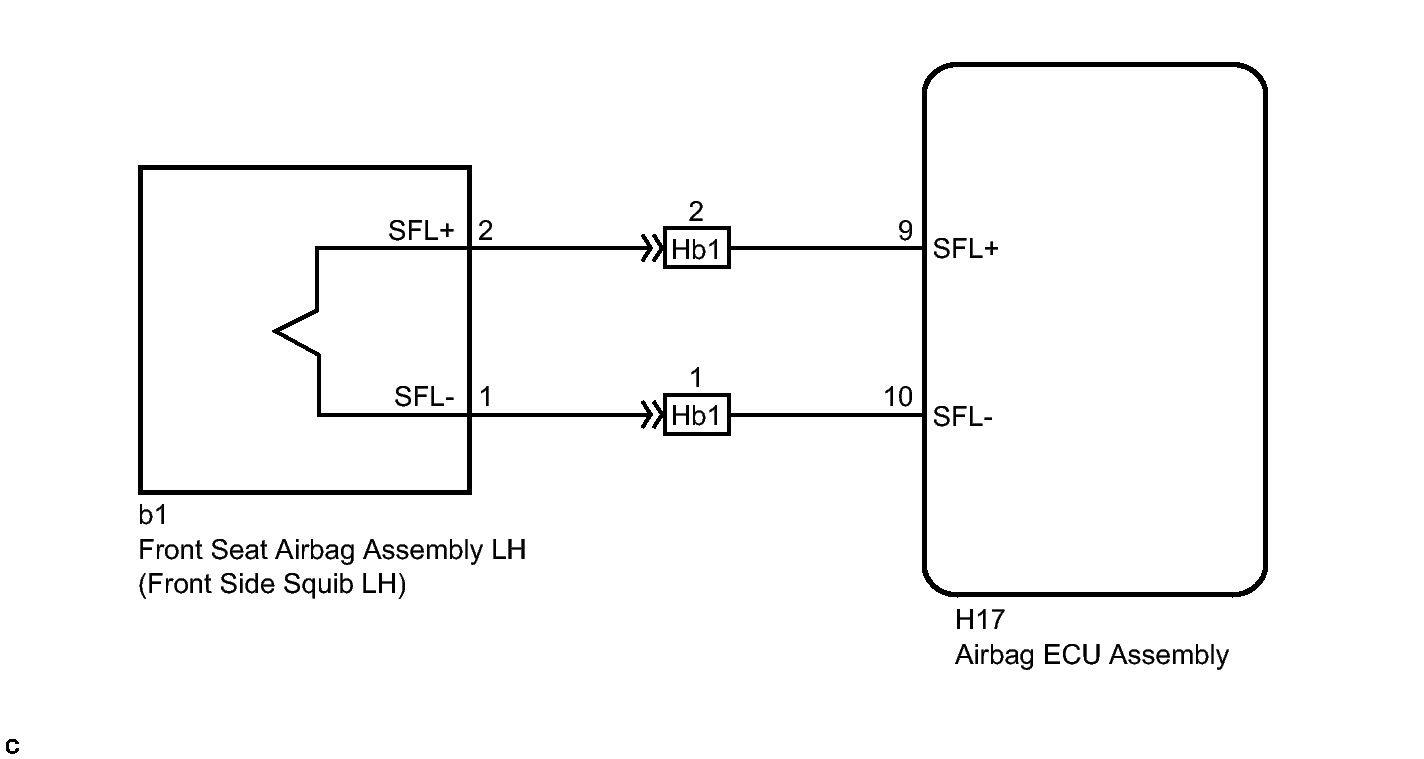

DTC B1825: Short in Side Squib (LH) Circuit; DTC B1826: Open in Side Squib (LH) Circuit; DTC B1827: Short in Side Squib (LH) Circuit (to Ground); DTC B1828: Short in Side Squib (LH) Circuit (to +B): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
