DTC B1678: Lost Communication with Rear Floor Airbag Sensor LH; DTC B1679: Rear Floor Airbag Sensor LH Initialization Incomplete: Wiring Diagram

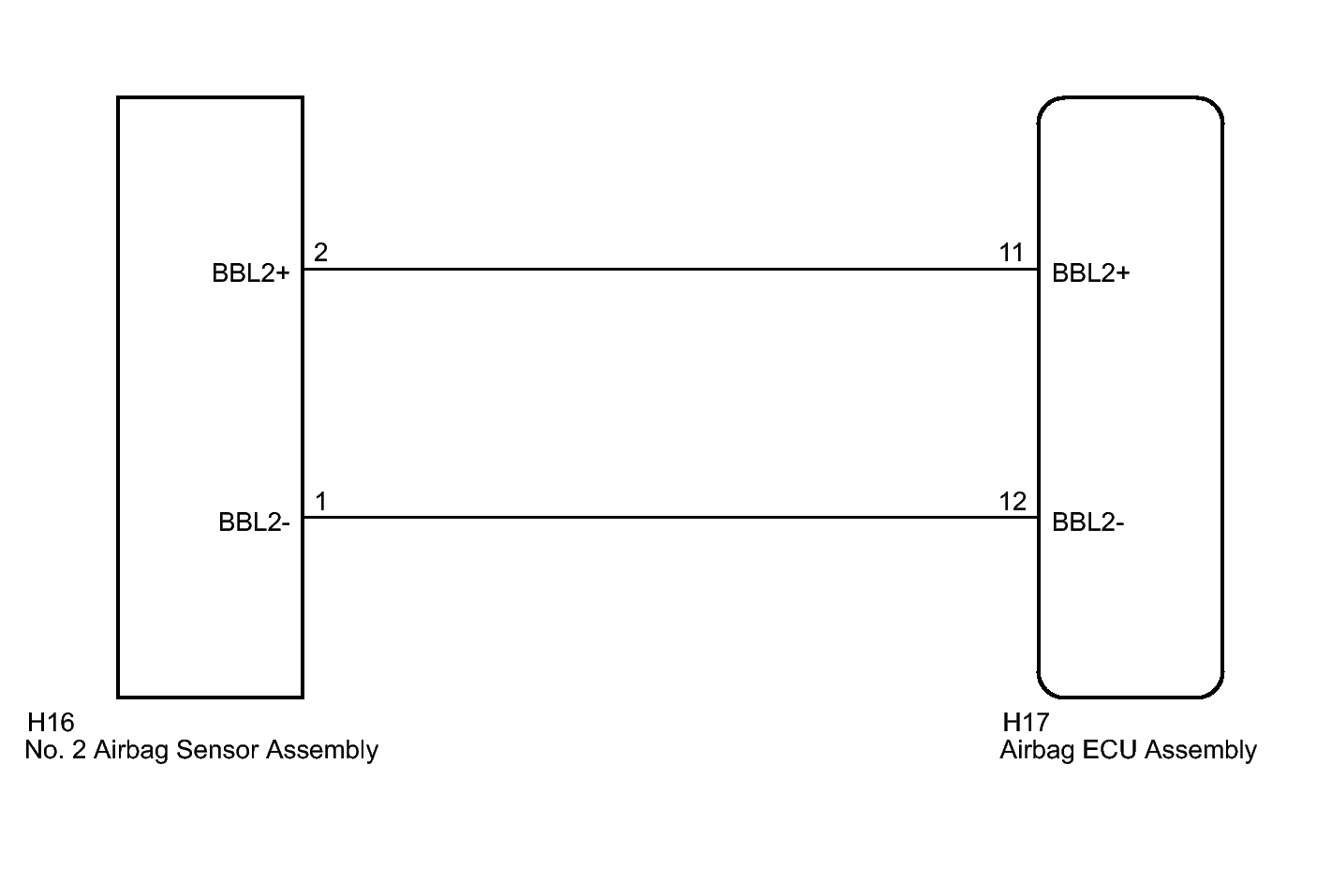

Fig 1: Rear Floor Airbag Sensor Wiring Diagram
GTY390962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
