Air Conditioning Compressor Magnetic Clutch Circuit: Wiring Diagram

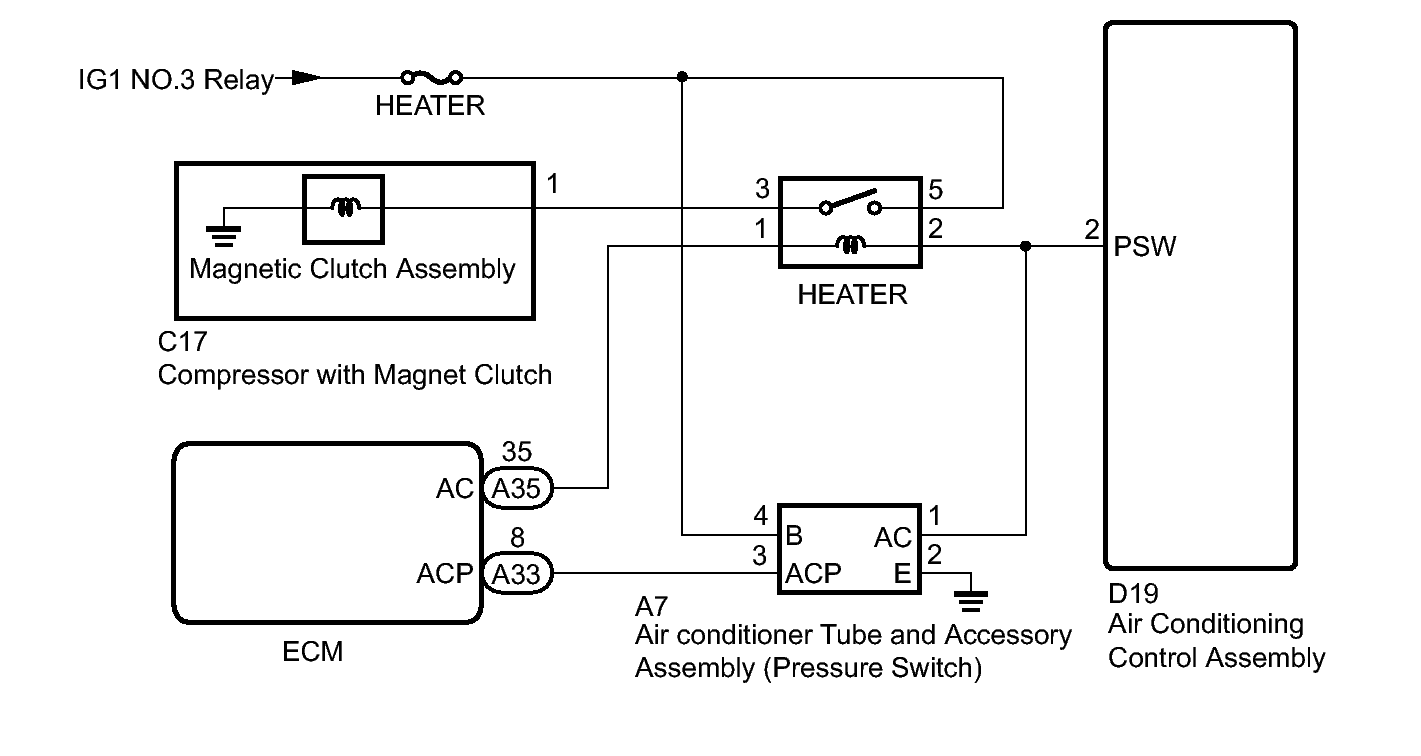

Fig 1: Air Conditioning Compressor Magnetic Clutch Circuit Wiring Diagram

GTY387895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
