DTC P0458: Evaporative Emission System Purge Control Valve Circuit Low; DTC P0459: Evaporative Emission System Purge Control Valve Circuit High: Wiring Diagram

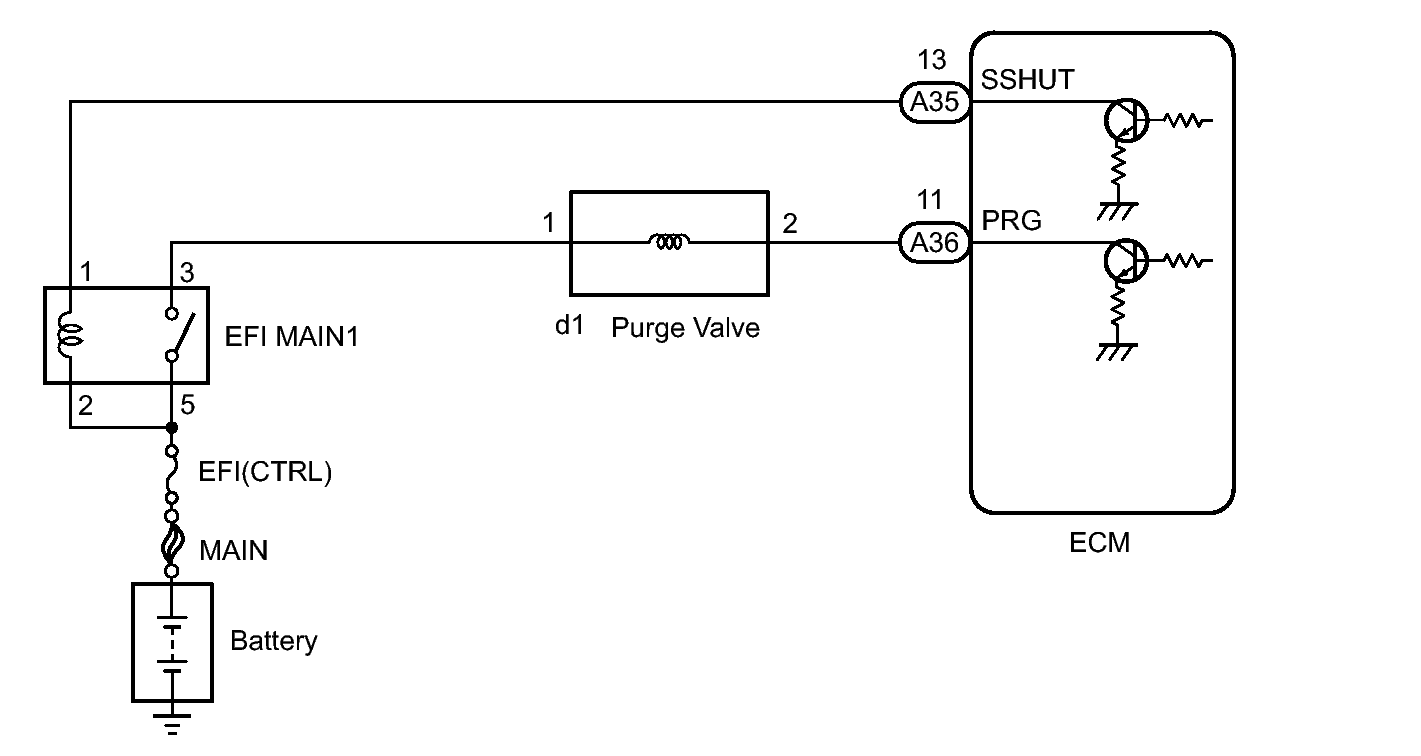

Fig 1: Identifying Emission Control System Wiring Diagram
GTY387421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
